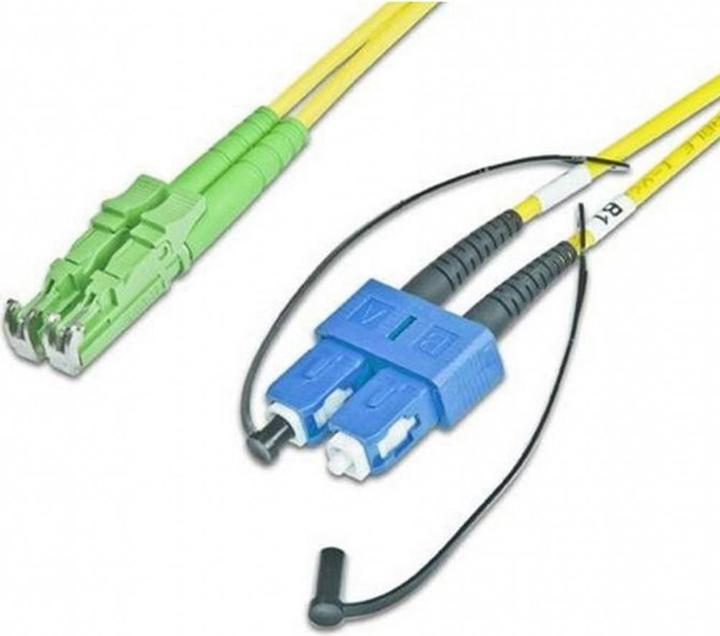

Lightwin LWL Duplex Patch Cable

Singlemode E2000/APC-SC Duplex OS2 10 m. Cable length: 10 m. Fiber quality: OS2. Duplex. Connectors: E2000/APC - SC. SC connectors are standard connectors for fiber optic cabling. They feature an automatic locking mechanism and a twist protection. Their use is recommended for new installations of computer networks using fiber optic technology. The connector is suitable for both singlemode and multimode fibers. It can establish simplex, duplex, and multi connections. E2000 connectors are designed for both singlemode and multimode fibers and are characterized by their high data throughput. A special feature of the E2000 connector is a small flap that protects the user from emitted laser beams and the fiber end from dirt and damage. APC - Angled Physical Contact. For connectors with the APC designation, the end face is not only convex but also tilted a few degrees relative to the fiber axis. This design allows reflected light from the core to be refracted into the air through the cladding glass, thus preventing interference with data transmission.
