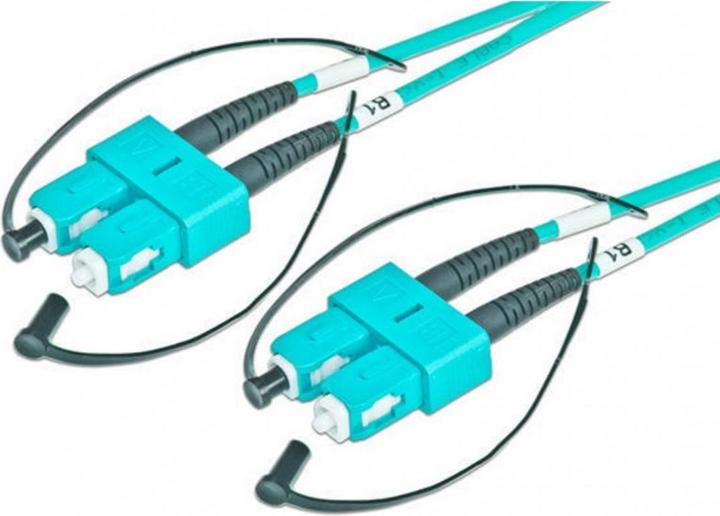

Lightwin LWL Duplex Patch Cable

Multimode SC-SC OM3 20 m. Cable length: 20 m. Fiber quality: OM3. Connectors: SC - SC. Multimode fiber with a fiber diameter of 50/125 µm. SC connectors are standard connectors for fiber optic cabling. They feature an automatic locking mechanism and a twist protection. Their use is recommended for new installations of computer networks using fiber optic technology. The connector is suitable for both single-mode and multimode fibers. It can be used to create simplex, duplex, and multi connections. OM3 classification. The OM designation in a fiber optic cable defines the quality class of a multimode fiber optic cable. The classification distinguishes four classes (OM1 to OM4). The distinction is made based on the level of optical attenuation and the possible transmission rate and distance. OM3 and OM4 fiber categories are designed for high-speed applications such as 10/40/100 Gigabit Ethernet or Fibre Channel at 850 nm. OM3 multimode fibers have an Effective Modal Bandwidth (EMB) of 2 GHz x km.
