Legrand Staircase lighting timer

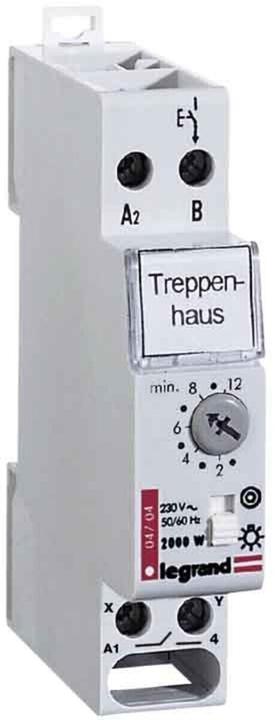

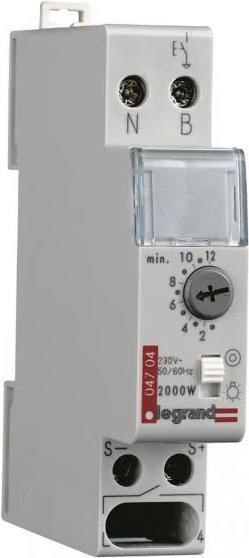

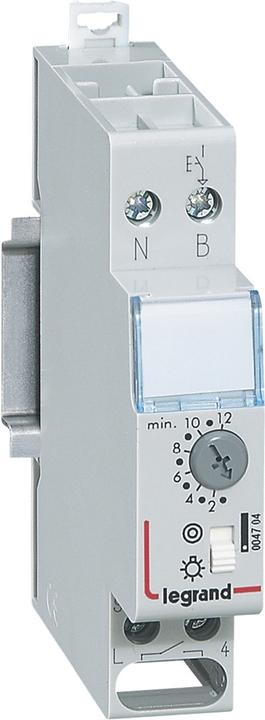

Legrand staircase time switch Rex800Multi/04704

Manufacturer: Legrand
Designation: Staircase time switch
Voltage: 230V, 50/60Hz
Type: Rex800Multi/04704
Function: Electronic with multifunction
Mounting type: DIN rail
Width in units of pitch: 1
Installation depth: 70 mm
Number of contacts as normally open: 1
Control voltage 1: 8..230 V
Control voltage type 1: AC
Frequency of control voltage 1: 50..60 Hz
Control voltage 2: 8..230 V
Control voltage type 2: AC/DC
Frequency of control voltage 2: 50..60 Hz
Rated switching current: 16 A
Max. switching current (cos phi: 0): 13 A
Release delay: 0.5..12 min
Pushbutton glow lamp current: 50 mA
Switching type: 3- and 4-wire switching
Switch-off prewarning: Flickering
Current surge function selectable: Yes
Post-switching: Post-switchable
Supply voltage: 250 V
Voltage type of supply voltage: AC
Max. incandescent lamp load: 2000 W
Max. fluorescent lamp load: 1000 VA
Max. fluorescent lamp load (duo circuit): 1000 VA
Max. fluorescent lamp load (parallel compensated): 1000 VA
Fluorescent lamp load (parallel compensated): 1000 VA

Legrand staircase lighting timer Rex800Multi/04704: more details
Rex800Multi, staircase lighting timer, electronic, operating voltage 230 V 50/60 Hz, 1 NO contact, extremely quiet, time range: 0.5 - 12 min., with separate control voltage input 8 - 230 VAC/DC, can be switched at any time. Multifunctional, adjustable at the selector switch: TLZ standard, with pre-warning function, with long-term function 1 h, with pre-warning and long-term function 1 h, disconnectable timer, disconnectable timer with pre-warning function, electronic relay. Automatic 3-/4-wire connection identification, manual switch for switching from minute light to continuous light, zero-crossing circuit, glow lamp current max. 50 mA, protection class IP 20, mounting on DIN rail EN 60715 by means of latching quick fastening, with labeling window, device width: 1 division unit of 17.5 mm. EAN: 4010957047047.
