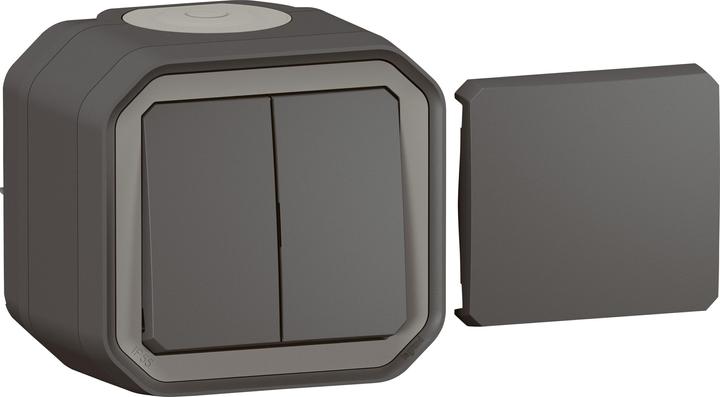

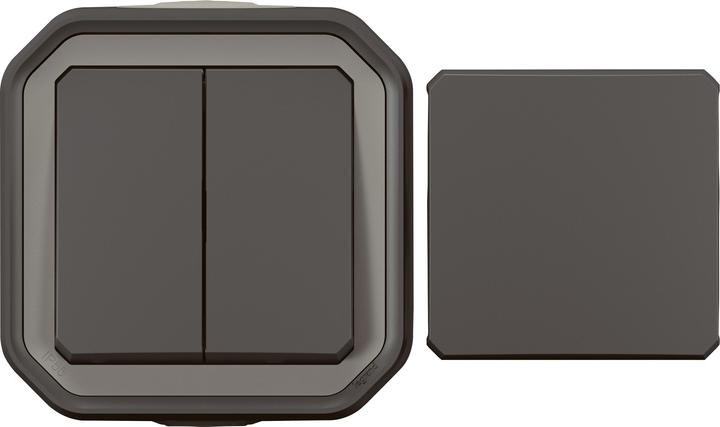

Legrand Plexo New 5-in-1 moisture-proof surface-mounted switch
Only 2 pieces in stock at supplier
Product details
The Plexo New 5-in-1 moisture-resistant surface-mounted switch from Legrand is a versatile solution for controlling electrical devices in damp environments. This multifunction switch combines five different functions in a compact design, including double toggle switches, double changeover switches, as well as changeover switches and push buttons. With an IP55 protection rating, it is ideally suited for use in basements, garages, and other damp areas. The installation is particularly flexible due to the modular design and the option to switch between horizontal and vertical mounting. The removable insert simplifies wiring and installation, allowing for customization to meet specific requirements. The Plexo New switch combines functionality with a simple, modern design that seamlessly integrates into various environments.
- Five functions in one device: double toggle switches, double changeover switches, changeover switch + push button, changeover switch, and toggle switch
- IP55 protection rating for use in damp environments
- Modular design allows for individual adjustments and easy installation
- Flexible mounting options through horizontal and vertical orientation
- Removable insert for comfortable wiring and installation.
Colour | Grey |
Switch + button type | Push-button switch |
Mounting type | Finery |
Width | 82 mm |
Documents | Assembly instructions.pdf |
Item number | 40841490 |
Manufacturer | Legrand |
Category | Buttons + Switches |
Manufacturer no. | 069789L |
Release date | 12.12.2023 |
Colour | Grey |
Exact colour description | anthracite (similar to RAL7016) |
Material group | Plastic |
Material | Thermoplastic resin |
Switch + button type | Push-button switch |
Operating mode | Key, Rocker |
Mounting type | Finery |
Mounting type | Screw fastening |
LED colour | without LED |
Nominal voltage | 250 V |
Nominal current | 10 A |
Max. Switching capacity | 10 W |
Protection type (IP code) | IP44, IP55 |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂ emissions | 64.27 kg |
Climate contribution | CHF 0.98 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Scope of delivery | Application, Base body, Cover, Housing, Membrane, Wall levelling |
Length | 61 mm |
Width | 82 mm |
Height | 85 mm |
Length | 9.80 cm |
Width | 9.30 cm |
Height | 8.40 cm |
Weight | 171 g |
