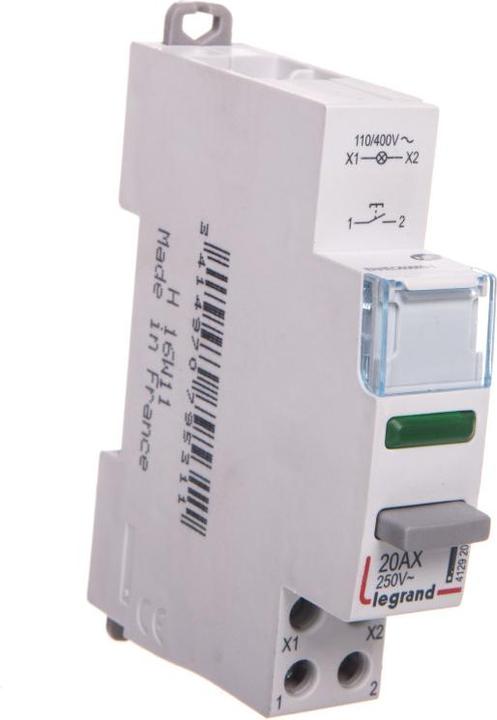

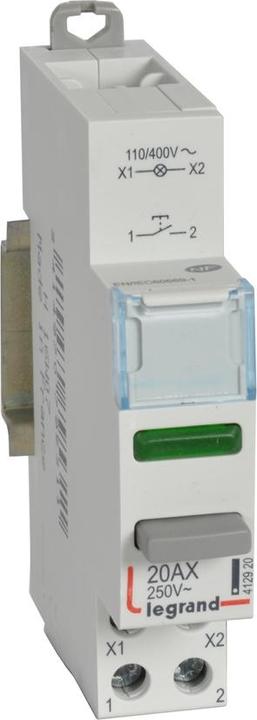

Legrand BUTTON SWITCH SINGLE MONOSTABLE WITH LAMP LE-412920 1X NO 20 A

Switches are used for the manual control of circuits. For quick identification, the devices feature a description window. The device LE-412920 is designed for mounting on a DIN TS-35 rail. Device type: Push-button switch, simple monostable with lamp, 1x normally open contact. LED indicator: Green 110 / 400 V AC. Rated current: 20 A. Rated voltage: 250 V AC, 50/60 Hz. Rated impulse voltage withstand: 4 kV. Rated insulation voltage: 500 V. Utilization category: AC12. Connection type: Screw terminals. Main features: Connection possibility with busbars, designated space for a description sheet, compatible with fluorescent lamps (20 AX), LED indicator. Housing: Plastic, mounting on DIN TS-35 rail. Width in modules: 17.5 mm. Weight: 0.056 kg. Dimensions: 94.9 x 67.3 x 17.8 mm. Manufacturer / Brand: LEGRAND. Warranty: 2 years. CE declaration of conformity.
