Ledvance LED module

LEDVANCE LED-RGBW-Stripe LS PFM-1000RGBW840/5

Manufacturer: LEDVANCE
Designation: LED-RGBW-Stripe 5m
Type: LS PFM-1000RGBW840/5
Energy efficiency class of the permanently installed light source: A++, A+, A (LED)
Design: Strip
Installation type: Surface-mounted
Light source: LED not replaceable
Number of light sources per metre: 120
Number of light sources per foot: 36
Lamp wattage per metre: 18 W
Luminous flux per metre: 1235 lm
Voltage type: DC
Lamp voltage: 24 V
Beam angle: 120 °
Control gear: Not required
Rated service life L70/B50 at 25 °C: 40000 h
Protection class (IP): IP00
Protection class (NEMA): 1
Max. system power: 98 W
Light colour: RGBW
Colour temperature: 4000 K
Colour rendering index CRI: 80-89

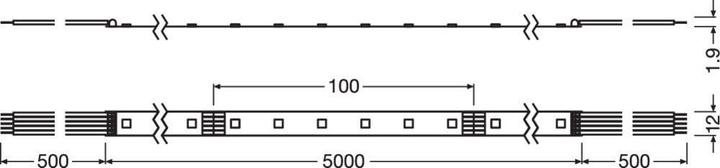

Width: 12 mm
Height/depth: 1.9 mm
Length: 500 mm
Smallest bending radius: 30 mm
Length of individual sections: 100 mm
With protective cover: No
Self-adhesive: Yes
Number of poles: 5
Conductor cross-section: 0.5 mm²
Connection type: Other

High-performance RGBW LED strips with 1000 lm/m for demanding applications.

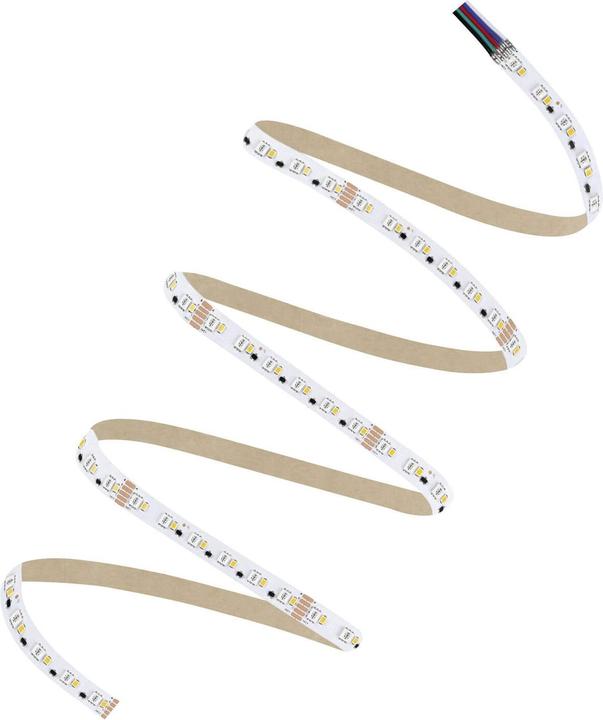

Product features: Flexible and divisible LED strip with white LEDs and multichip RGB LEDs. Smallest divisible unit: 100 mm. Service life (L70/B50): up to 40,000 h at Tc max. = 85°C. Dimmable via pulse width modulation (PWM).

Product advantages: Great design freedom thanks to long, flexible RGBW LED light strips. Simple installation, tool-free connection. Simple installation thanks to self-adhesive tape. Maximum flexibility thanks to large selection of accessories. Simple connection thanks to integrated cables on both sides. Good white light thanks to the additional white LEDs.

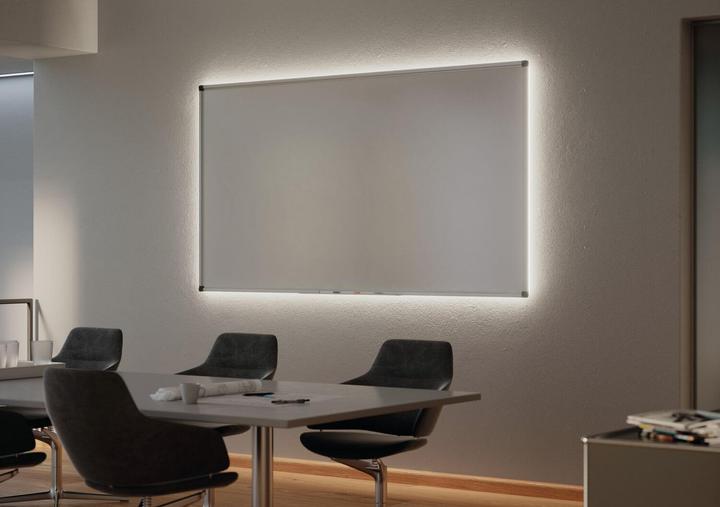

Areas of application: General lighting, architectural lighting, dynamic effects in zones with public traffic, intense colour effects for special moods, cove lighting, hotels and offices, living spaces.

EAN: 4058075436282.
