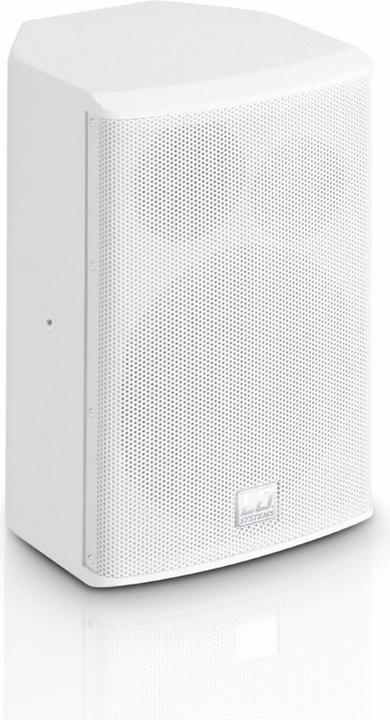

LD Systems SAT 62 A G2 W 6.5" installation loudspeaker

The LD Systems SAT62AG2 is the active version of the SAT62G2. This compact 2-way speaker is suitable not only for installation but also as a monitor in home studios and for other sound reinforcement tasks.

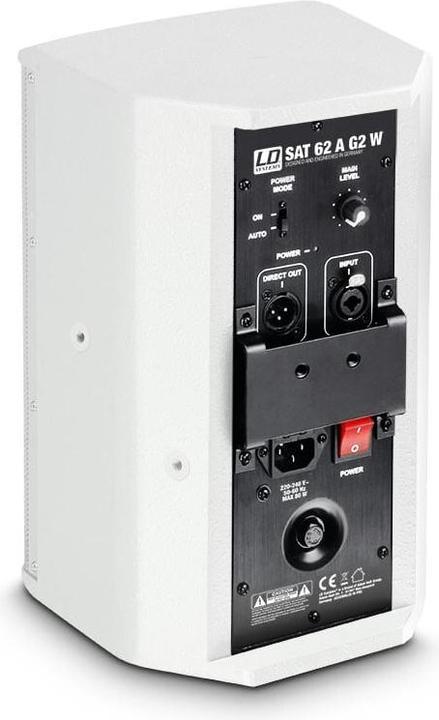

The bass reflex design features a 6.5" custom woofer and a 1" silk dome tweeter with a waveguide, powered by a Class AB amplifier with 50 W RMS output and overcurrent protection. An XLR-jack combo socket serves as the input, while an XLR socket allows for signal looping. The sound reproduction is balanced and dynamic across the entire frequency range of 55 Hz to 20 kHz, achieving a maximum sound pressure level of 108 dB. The SAT62AG2 is equipped with a switchable power-saving mode that automatically switches to standby after 3 minutes of no signal.

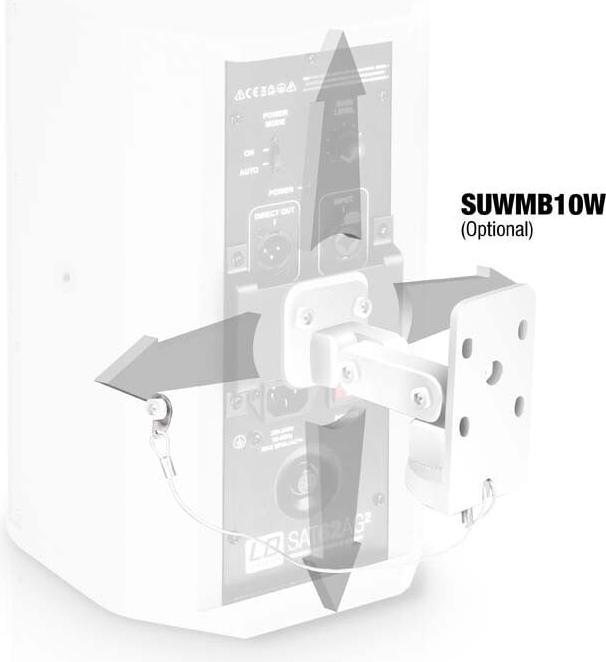

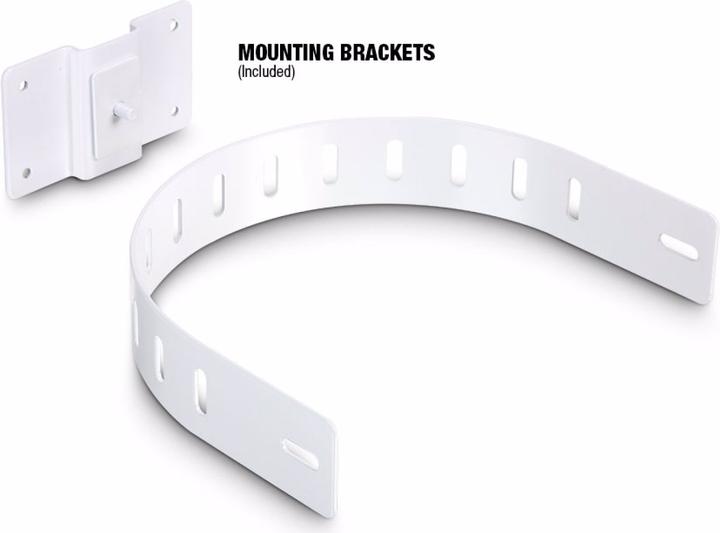

The 12 mm thick MDF cabinet with a durable textured finish is available in black and white and is equipped with M6 flying points. A mounting bracket is included for additional mounting options, and a universal joint holder is offered as an accessory.
