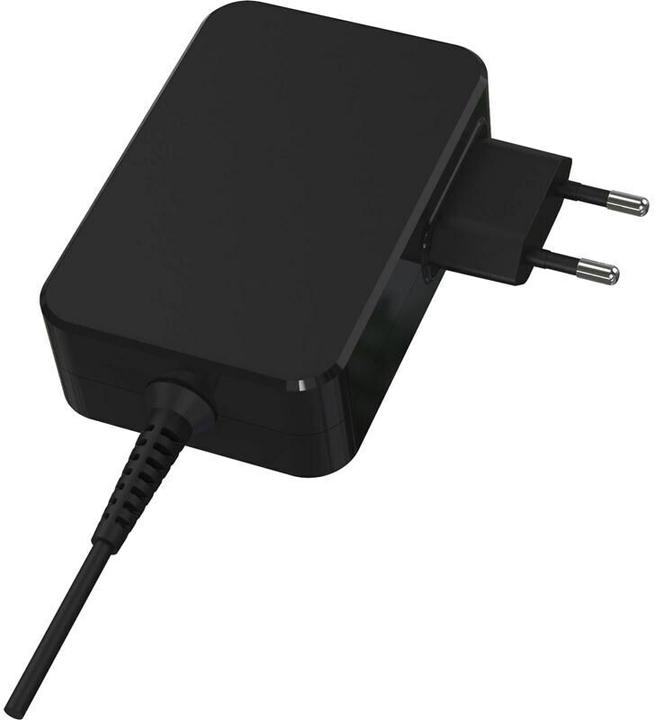

LC-Power Notebook power supply LC-NB-GAN-90-C

Fast, compact, efficient, and powerful. Thanks to the new GaN technology, chargers can be built more compactly while providing a more efficient and faster charging process. The LC-NB-GAN-90-C features a USB-C charging port with a maximum output power of 90 W and can be used with almost any notebook or device with a USB-C connection.

• 90 W USB-C port
• High efficiency of up to 90.3%
• Stable performance, low ripple
• Safety circuits: Overcurrent protection (OCP), overload protection (OLP), overvoltage protection (OVP), overheating protection (OTP), short circuit protection (SCP)

Power supply type: Notebook adapter (USB-C)
Input voltage: 220-240 V
Input frequency: 50-60 Hz, 1.8 A
Output power: 90.0 W
Output voltage: 5.0-20.0 V
Output current: 3.0-4.5 A
Output voltage/current: 5.0 V / 3.0 A, 9.0 V / 3.0 A, 12.0 V / 3.0 A, 15.0 V / 3.0 A, 20.0 V / 4.5 A
Standby consumption:
Average efficiency in operation: 81.80%
Efficiency at low load (10%): 70.18%
Power consumption at no load: 0.05 W

Dimensions (product): 92 x 62 x 30 mm
Dimensions (packaging): 170 x 132 x 35 mm
Weight (product/total): 0.280 / 0.331 kg
Cable length: approx. 180 cm
Material: Plastic
Color: Black
Certification mark: CE
Manufacturer code: LC-NB-GAN-90-C
Included in delivery: 1x power supply, 1x manual
Compatibility: Compatible with many USB-C models from brands such as Acer, Apple, Asus, Dell, HP, IBM, Lenovo, etc.

Customs tariff number: 85044083
Plug type: USB-C
Packaging volume: 0.0009 m³
Maximum output power: 90.0 W
Output voltage: 5.0 - 20.0 V
Manufacturer number: LC-NB-GAN-90-C
Width of packaging: 13.000 m
Height of packaging: 3.500 m
Length of packaging: 20.000 m
Country of origin: China
Manufacturer: LC-Power
Weight: 0.330 kg.
