Lapp Cable blade receptacle Mating width: 6.3 mm Mating thickness: 0.8 mm 180 ° Partially insulated
Minimum order 3Supplied by
Conrad CH
Free shipping starting at 50.–

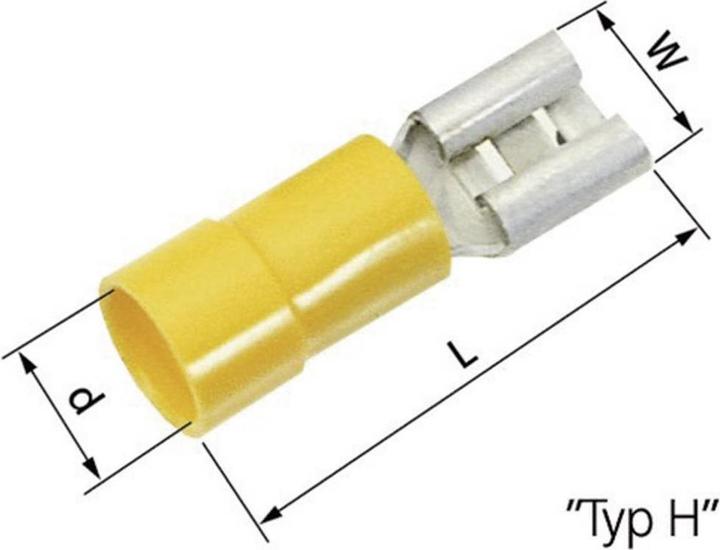

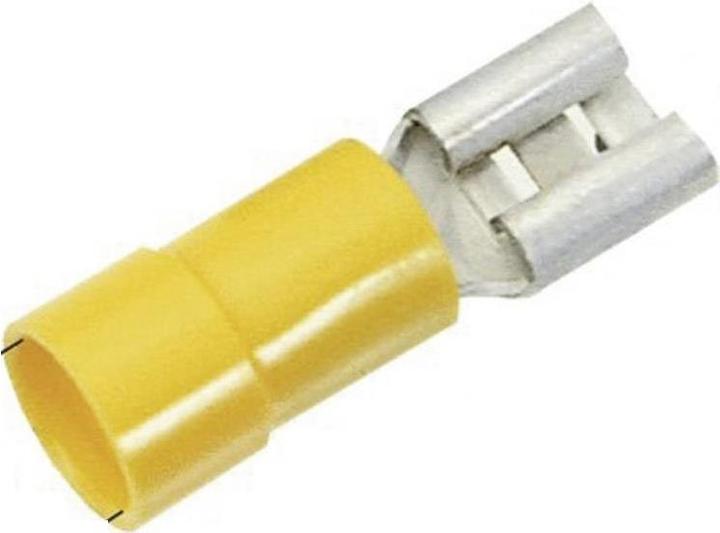

Flat plug sleeve yellow 6.3 mm x 0.8 mm 4 mm² - 6 mm². Technical data: Connection angle: 180°. Color: Yellow. Product part number: 63101110. Content: 50 pcs. Insulation material: Polyamide 6.6. Insulation type: Partially insulated. Contact material: Nickel-plated brass. Cross-section (max.): 6 mm². Cross-section (min.): 4 mm². Plug width: 6.3 mm. Plug thickness: 0.8 mm. Connector type: Flat receptacle. Support sleeve: No. Type: L-RC 63 H.
Cable + connector type | Blade receptacle |
Item number | 14294336 |
Manufacturer | Lapp |
Category | Cables + Plugs |
Manufacturer no. | 63101110 |
Release date | 14.11.2020 |
Minimum order | 3 |
Colour | Yellow |
Material group | Metal |
Material | Brass, Polyamide |
Cable + connector type | Blade receptacle |
Max. temperature | 105 °C |
Min. temperature | 20 °C |
Manufacturer Type | L-rc 63 h |
Connectors Design | Flat |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 100 Piece |
Scope of delivery | 50 piece |
Length | 2.15 cm |
Width | 0.67 cm |
