Lamptron CFP30B Sync Edition PCI ARGB fan and LED controller

The CFP30 ARGB Sync is a controller that allows you to manage both fans and A-RGB elements. The controller provides a high output of 30 watts per fan channel. With a total of four channels, this results in a total power of 120 watts. The fan speed can be adjusted continuously between 2 to 12 volts, and complete shutdown is also possible. A total of four 4-pin fans can be connected.

In addition to powering the fans, their digital RGB LED lighting can also be connected. There are a total of four 3-pin slots available (5VDG, 5 V). The lighting control can be managed either through the motherboard or via the included remote control.

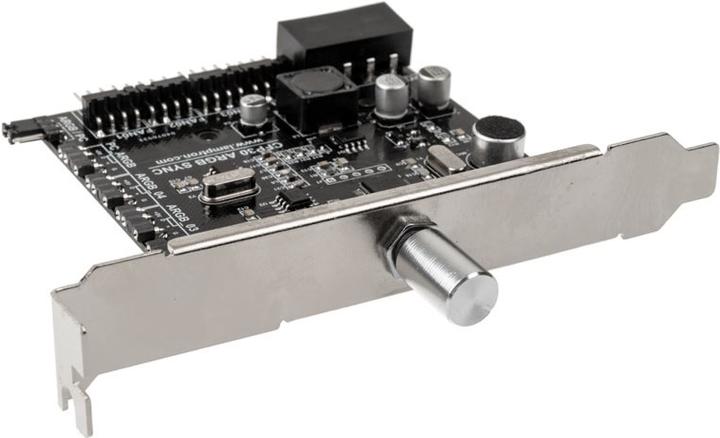

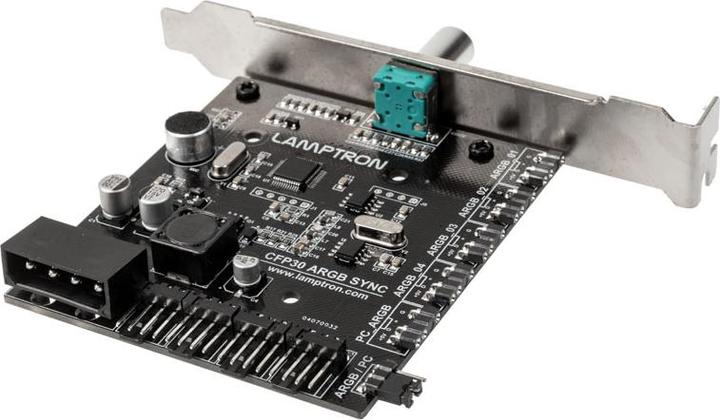

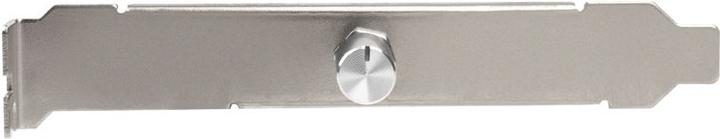

The fan controller is mounted in a PCI slot of the case and features a silver aluminum cover. Power is supplied via a 4-pin Molex connector for a direct connection to the power supply.

Technical details:

• Compatibility: 1x PCI bracket
• Dimensions: 124 x 20 x 111 mm (W x H x D)
• Material: Aluminum
• Color: Silver
• Channels:
• Fans: 4x 4-Pin (max. 30 W per channel)
• RGB: 4x 3-Pin (5VDG, 5 V)
• Voltage: continuously adjustable 2 - 12 V
• Connections:
• 1x 4-Pin Molex
• 4x 4-Pin (fans)
• 5x 3-Pin (digital RGB LED lighting, 1x input, 4x output)
• 1x remote control
• Package contents:
• 1x CFP30 ARGB
• 1x remote control
• 1x 3-Pin RGB extension cable
• 1x screw.
