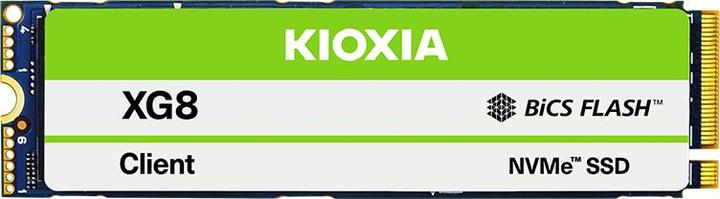

Kioxia XG8 Series KXG80ZN84T09 - SSD - 4

Short Info: KIOXIA XG8 Series KXG80ZN84T09 - SSD - 4096 GB - internal - M.2 2280 (double-sided) - PCIe 4.0 x4 (NVMe)

Product Description: KIOXIA XG8 Series KXG80ZN84T09 - SSD - 4096 GB - PCIe 4.0 x4 (NVMe)

Type: Solid State Drive - internal
Capacity: 4096 GB
NAND Flash Memory Type: TLC (Triple-Level Cell)
Form Factor: M.2 2280 (double-sided)
Interface: PCIe 4.0 x4 (NVMe)
Features: SLC Cache, 3D BiCS Flash, NVM Express (NVMe) 1.4

Dimensions (Width x Depth x Height): 22 mm x 80 mm x 3.58 mm
Weight: 8.3 g

Detailed Information:
General
Device Type: Solid State Drive - internal
Capacity: 4096 GB
NAND Flash Memory Type: TLC (Triple-Level Cell)
Form Factor: M.2 2280 (double-sided)
Interface: PCIe 4.0 x4 (NVMe)
Features: SLC Cache, 3D BiCS Flash, NVM Express (NVMe) 1.4
Width: 22 mm
Depth: 80 mm
Height: 3.58 mm
Weight: 8.3 g

Performance
Internal Data Transfer Rate: 7000 MB/s (read) / 5800 MB/s (write)
Reliability: MTBF 1,500,000 hours

Expansion and Connectivity
Interfaces: 1 x PCI Express 4.0 x4 (NVMe) - M.2 Key M
Compatible Form Factor: M.2 2280 (double-sided)

Power Supply
Power Consumption: 8.1 Watts (active) / 3 mW (L1.2 mode)

Environmental Conditions
Min. Operating Temperature: 0 °C
Max. Operating Temperature: 95 °C
Min. Storage Temperature: -40 °C
Max. Storage Temperature: 85 °C
Operating Humidity: 0 - 90% RH
Shock Tolerance (in operation): 1500 g @ 0.5 ms
Vibration Tolerance (in operation): 20 g @ 20-2000 Hz
Vibration Tolerance (not in operation): 20 g @ 20-2000 Hz.
