Kenwood Corp. XH901-5

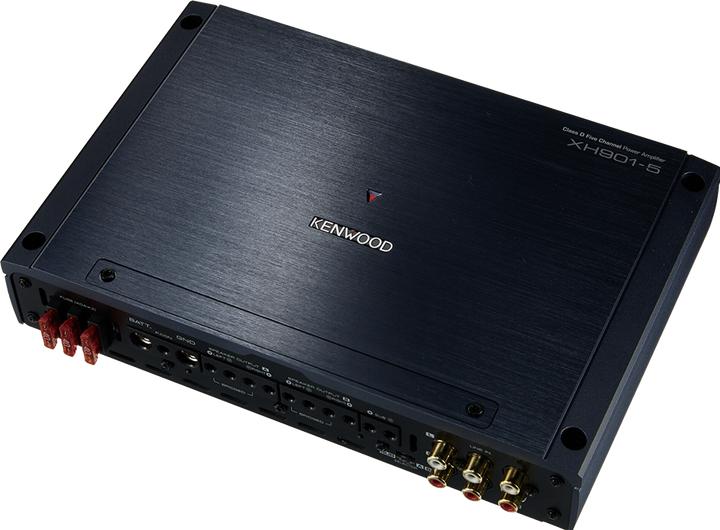

Kenwood XH901-5 Amplifier Hi-Res Audio

The power amplifiers of the XH series are capable of reproducing frequencies beyond the usual 20 kHz, allowing for the full bandwidth and all details of high-resolution audio data to be rendered. Combined with an exceptionally low S/N level, high-quality recordings can be played back at an impressive level with the XH series.

High-level inputs and automatic power-on

The amplifiers of the XH series can be connected directly to the high-level outputs of an existing car radio, in addition to operation via RCA cables. As soon as the signal is present, the amplifier automatically turns on, eliminating the need for a separate control line for powering on.

Features:

• 5-channel power amplifier with 2-ohm load stability
• Aluminum housing for optimal heat dissipation
• Frequency response: 20 Hz - 50 kHz
• Integrated low-pass filter (50 Hz ~ 200 Hz, -12 dB/oct. (Channel B))
• Integrated high-pass filter (50 Hz ~ 200 Hz & 2.5 ~ 10 kHz, -12 dB/oct. (Channel A))
• Adjustable input sensitivity (0.2 V - 5 V)
• Power supply with MOSFET power transistors
• Dimensions (LxWxH): 260 x 169 x 51 mm
• Output power: 60 Watts x4 + 400 Watts x1 (4 Ohm), 75 Watts x4 + 600 Watts x1 (2 Ohm)
• Max. output power: 1000 Watts
• Connections: 6 gold-plated RCA inputs, high-level connection for car radios without preamp output, automatic power-on.
