Kemo Power regulator 110 - 240 V/AC
Potentiometers, Minimum order 2Supplied by
Conrad CH
Free shipping starting at 50.–

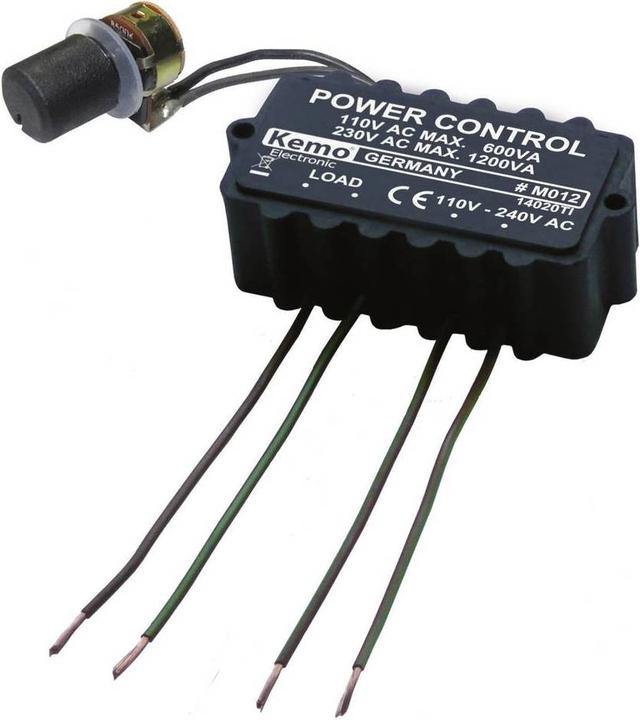

The Kemo M012 power controller is a versatile passive component designed for controlling resistive and inductive loads such as heaters and hand drills. With an operating voltage of 110 to 240 V/AC and a maximum current capacity of 6 A, this module provides a reliable solution for various applications. The control is managed via a permanently connected rotary potentiometer, allowing for precise adjustment of the power. The power controller is suitable for use in a temperature range of 0ºC to +50ºC and can be operated in both phase-cut and with control voltages when the additional module M150 is used. This makes it a flexible choice for different requirements in electrical engineering.
Item number | 21602248 |
Manufacturer | Kemo |
Category | Passive electronic components |
Manufacturer no. | M012 |
Release date | 3.8.2022 |
Sales rank in Category Passive electronic components | 3 of 708 |
Minimum order | 2 |
Material | -999 |
structural component | Potentiometers |
Max. temperature | 60 °C |
Min. temperature | -30 °C |
Manufacturer Type | M012 |
Nominal power | 600 W |
Max. operating voltage | 230 V |
Operating voltage | 230 V |
nominal load-bearing capacity | 1200 W |
Max. operating voltage | 230 V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |

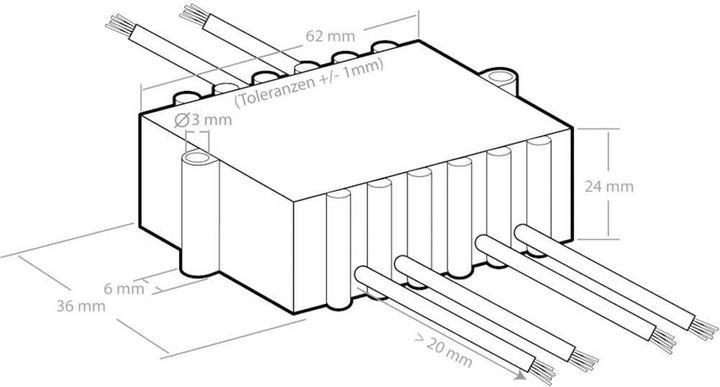

Length | 6.20 cm |
Width | 3.60 cm |
Height | 2.40 cm |
