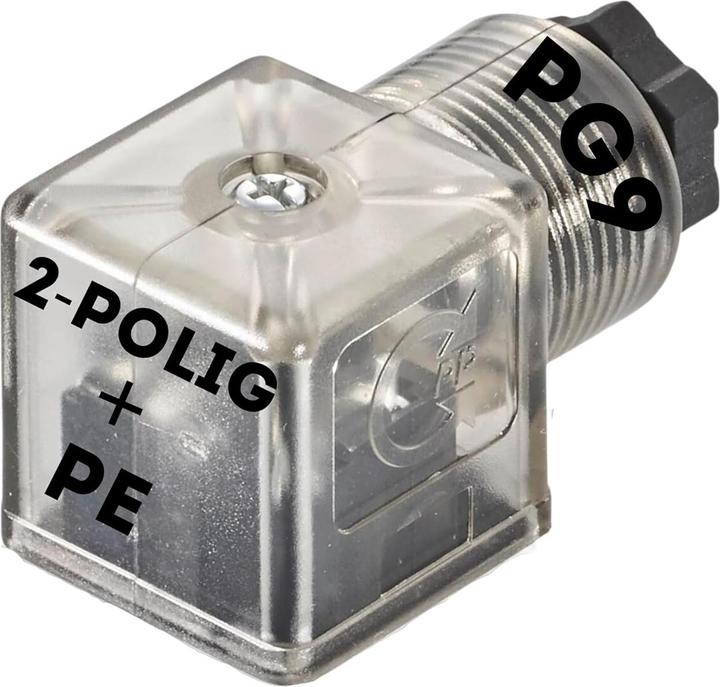

Kalitec 3 Stück Ventilstecker Bauform A I 3 polig 24V transparent mit Beschaltung I PG9 I LED + Vari

Our valve connector provides a waterproof and dustproof solution designed for a variety of applications, from medical technology to consumer electronics and technical systems in the mobility sector. Thanks to its robust construction and high protection rating of IP65, it is ideal for use in demanding environments such as drag chain and robotic applications.

The LED in a valve connector typically serves as a status indicator. When the valve is activated (switched on), the LED lights up, providing the user or technician with visual feedback on the operational status of the valve. It also helps identify issues during troubleshooting, as the LED will not light up if the valve is not functioning properly or if there is no power.

The varistor protects electrical devices and circuits from voltage spikes that could cause damage. When a voltage spike occurs, the varistor diverts the excess current to prevent damage to the electronics or the solenoid valve.

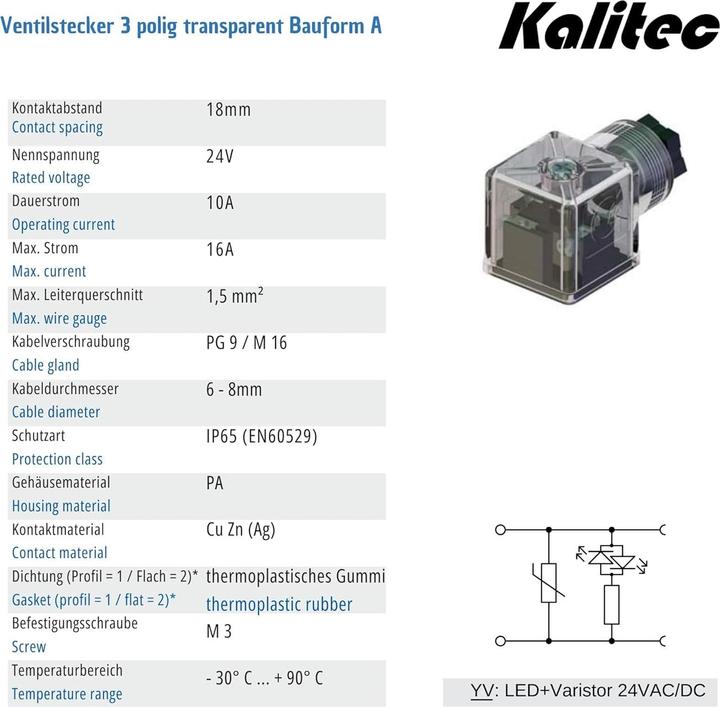

Technical specifications:

• Contact distance: 18 mm
• Rated voltage: 24 V
• Continuous current: 10 A
• Max. current: 16 A
• Max. conductor cross-section: 1.5 mm²
• Cable gland: PG9
• Cable diameter: 6-8 mm
• Protection class: IP 65 (EN 60529)
• Housing material: PA
• Contact material: CuZn (Ag)
• Seal: Thermoplastic rubber (Profile=1 / Flat=2)
• Mounting screw: M3
• Temperature range: -30°C to +90°C.
