Kaiser Fototechnik SW enlarger VP 9005 System-V

Black and white enlarger for all formats up to 6 x 9 cm and lenses up to 105 mm focal length.

• Base board (WxDxH): approx. 600 x 500 x 32 mm
• Lamp: Opal lamp 75 W, E 27
• Supply line: approx. 2.50 m
• Filter compartment: 85 x 85 mm
• Column (HxWxD): approx. 1000 x 70 x 35 mm
• Distance optical axis - base: approx. 220 mm

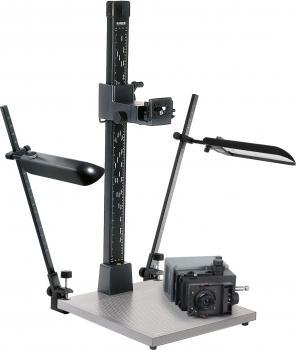

• Convertible to repro stand

Scope of delivery: Includes book image stage, lamp, and dust cover, without lens.

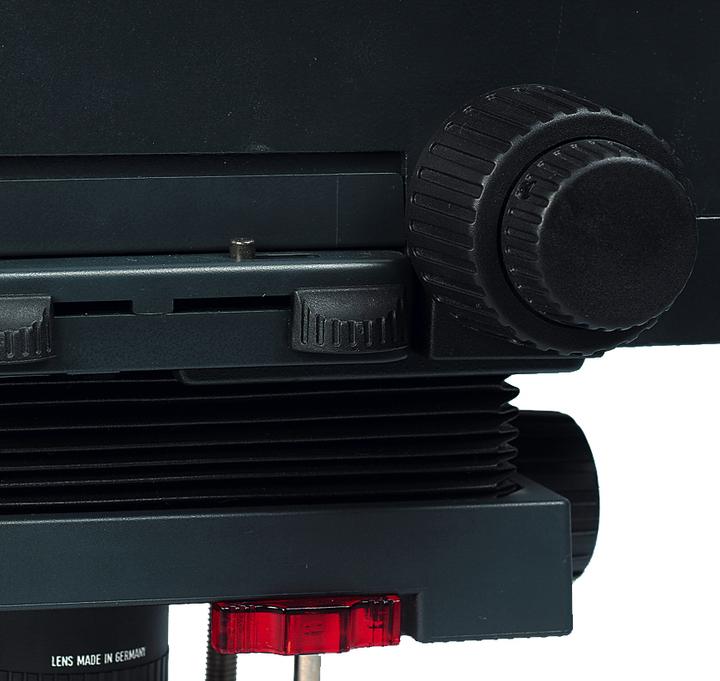

Book image stage equipped with AN glass at the top and plan glass at the bottom, additional format mask 6 x 7 cm. Focusing with additional fine drive. Height adjustment with weight compensation via built-in roller spring. Swiveling and height-adjustable filter holder for rectangular filters and framed Multigrade® filters, with diffuser disk for integral measurement.

Illumination head with 75 watt opal lamp, lamp adjustable. Exchangeable double condenser system. Drawer for insertion filters, e.g., Multigrade® filters.

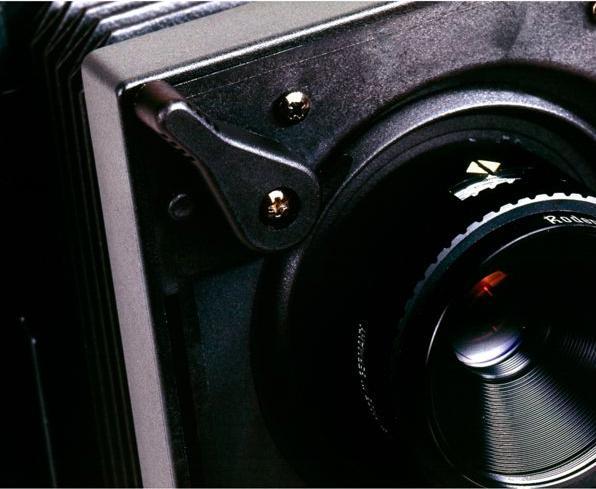

Removable book image stage with interchangeable inserts, adjustable format stops, adjustable film stop, and registration pins. Lens carrier with spirit level and red filter, swivels for Scheimpflug equalization. Quick lens change. Height adjustment with hand crank via friction drive with plastic bearings. Wall and floor projection possible.

Wide, low-vibration guide column made of aluminum profile tube, anodized matte black, with cm and inch scales as well as markings for magnification scales. Matt gray coated base board with individually height-adjustable feet. Base with built-in spirit level.
