Product details

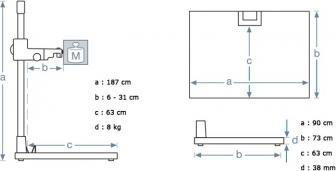

Base board (WxHxD): approx. 900 x 38 x 730 mm
Height of the guide column: approx. 1.80 m
Column cross section: 105 x 74 mm
Maximum load: 8 kg
Camera mounting plate: 130 x 78 mm
Connection thread: B 1/4 / B 3/8 interchangeable
Kaiser repro tripod RSDmot 1.8
The guide column is made of aluminum multi-chamber special profile, matt black anodized with imprinted cm and inch scales. The camera support is made of aluminum profile, horizontally adjustable by approx. 25 cm via parallel guide with toothed rack, right/left operation, with two locking screws to fix the set position. The camera mounting plate can be swiveled by ± 90°. The connection thread can be moved horizontally. Height adjustment of the camera mount is motorized with two speeds. It features a cable remote control and constant, load-independent adjustment speed. There is an automatic limit stop via light barriers and a power supply with an illuminated switch. The large, non-reflective, matt gray coated base board has a printed fine grid, cm and inch scale, height adjustable feet, and a spirit level on the base.
