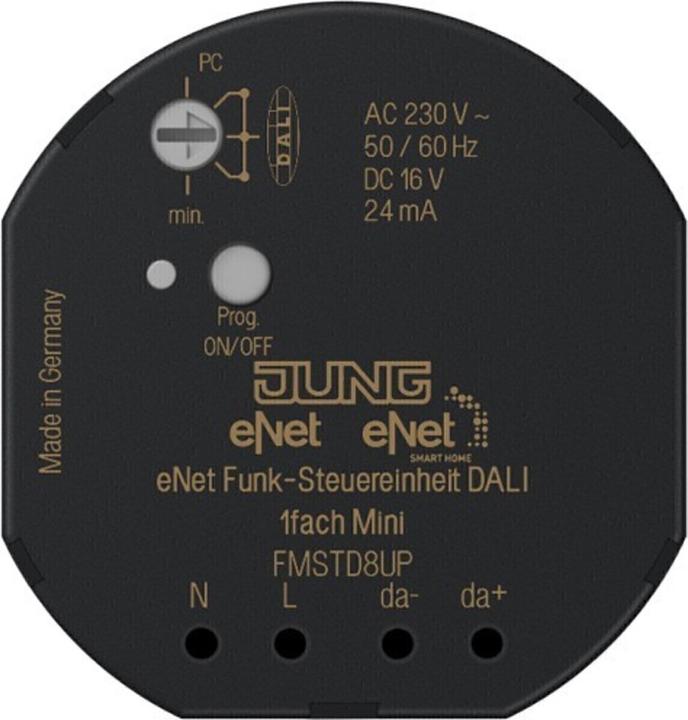

JUNG Radio control unit

The JUNG radio control unit, model FMSTD8UP, is a highly advanced switching actuator specifically designed for controlling lights with a DALI interface. It allows for precise brightness adjustment and the switching of up to 12 DALI participants. Installation is done in a device box according to DIN 49073 or in a surface-mounted housing. The unit can be operated with suitable eNet radio transmitters and offers a variety of functions that enable flexible light control. Outstanding features include the ability to store minimum and maximum brightness levels, as well as support for scene operation. The radio control unit is also equipped with electronic short-circuit protection and over-temperature protection, enhancing safety and reliability during operation. With eNet server functionality, additional settings such as dimming speed and delay time can be configured, further increasing adaptability to individual needs.

• Joint operation of all connected DALI ballasts
• Switch-on brightness and minimum brightness can be permanently stored
• Scene operation possible
• Fully encrypted radio transmission (AES-CCM) from eNet server software version 2.0
• Electronic short-circuit protection and over-temperature protection.
