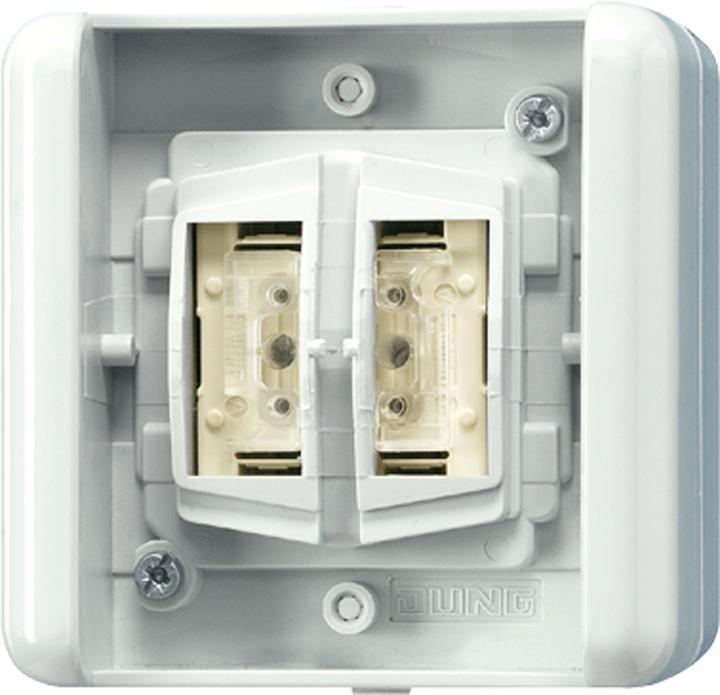

JUNG Push-button coupling KNX WG 800 2pkt 8472.02LEDW

Jung KNX Switch BA 8472.02 LEDW

Manufacturer: Jung
Designation: KNX Switch BA 2f. Center Position
Type: 8472.02 LEDW
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: Surface-mounted
Number of Activation Points: 2
Mounting Method: Screw mounting
Protection Class (IP): IP2X

Jung KNX Switch BA 8472.02 LEDW: additional details
Depending on the version of the BA switch, either single or double, switch rockers or series switch rockers with and without light guides are used. In the center position version, the rocker can be activated from the top or bottom, while in the push button version, activation can only occur from the bottom. The BA switch is only functional with an application program, meaning the BA switch consists of the device (hardware) and the application program (software). Using the ETS, the application programs can be selected, and specific parameters and addresses can be assigned.

Function: Switching (Buttons), Blinds, Dimming
LED: Permanent OFF/Permanent ON/LED Object, LED Display
KNX Medium: TP 256
The LED serves as a orientation light or status indicator, adjustable via parameters.
EAN: 4011377086616.
