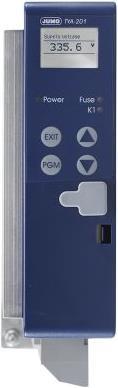

Jumo TYA-201 1 phase Thyristor Unit 20A 230V

Input type: Analog
Output type: Current
Signal form: Analog to current
Output range: 230 V AC
Supply voltage: 230 V
Mounting type: DIN rail
Operating temperature min.: 0 °C
Operating temperature max.: +45 °C
Operating temperature range: 0 → +45 °C

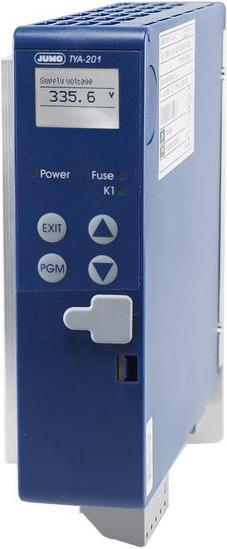

The TYA-201 is a single-phase power control unit. The microprocessor-controlled single-phase power control unit Jumo TYA 201 displays all parameters on a backlit LCD screen and is operated using the 4 buttons on the front. Thyristor power control units are used where larger resistive and inductive loads need to be switched, such as in industrial furnace construction and plastic processing. The thyristor power control unit contains two thyristors connected in antiparallel, the insulated cooling housing, and the control electronics. The operating modes include phase angle, burst firing mode, half-wave control, semiconductor relay logic operations, fast logic operations, alpha start, and soft start. Available subordinate control units are U, U2, I, I2, and P. The use of a subordinate control unit ensures that fluctuations in the supply voltage do not affect the feedback loop during the control process. Single-phase thyristor power control unit with simple device configuration through a straightforward text display. Setup program for configuration via USB interface. Transmission of installation data is possible, even without power supply for the device (USB connection serves as power supply). Network load optimization through dual energy management. General phase mode, burst firing mode, and half-wave control. Soft start function, current limitation, resistance monitoring, and limitation for MoSi2 heating elements. Learning program function for the detection of partial load faults. Integrated diagnostic systems (e.g., phase sequence detection).
