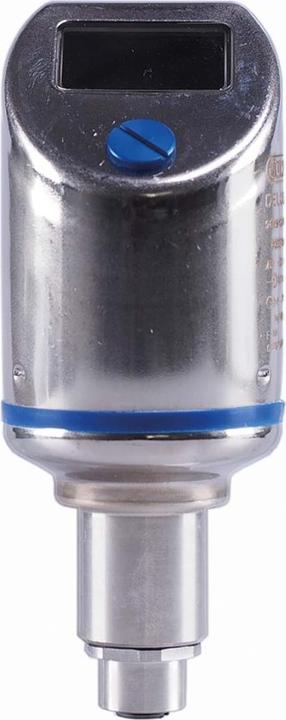

Jumo Temperature switch display
Product details
Jumo temperature switch indicator 00552545 Manufacturer :Jumo Designation :Temperature switch indicator 6x150mm,-50 - +150°C Type :00552545 Suitable as a monitor :no Suitable as a 2-point controller :yes Suitable as a limiter :no Max. Operating temperature :260 °C Adjustable switch-on temperature :-50 °C Adjustable switch-off temperature :150 °C Device design :Screw-in fitting Sensor design :PTC Rated control supply voltage Us at DC :12...30 V Electrical connection version :Flat plug connection Protection class (IP) :IP67 Electronic version :yes Explosion-proof :no Jumo temperature switch display 00552545: Further details The high-precision electronic temperature switch basically consists of a protective tube with built-in temperature sensor, a process connection and an attached stainless steel housing with LCD display for the electronics. The electronic temperature switch can be used in an operating temperature range of -50 to +150 °C, is intended for industrial use and complies with European standards to ensure electromagnetic compatibility (EMC). The ambient temperature of the display housing is designed for a range of -20 to +75 °C. The protective tube has a dimension of 6 x 150 mm and the process connection is a screw connection G 1/2. The materials used are stainless steel 316Ti (material no. 1.4571). All parts in contact with the medium are electrolytically polished, roughness depth Ra less than or equal to 0.8 micrometres. The device also has a 1× PNP switching output (binary output) and a configurable 1× analogue output (4 to 20 mA). The product is not intended for export to the USA. EAN: 4053877015741.
Item number | 36817877 |
Manufacturer | Jumo |
Category | Home automation |
Manufacturer no. | 00552545 |
Release date | 28.6.2023 |
Automation type | Switch |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Temperature switch display 00552545 |
