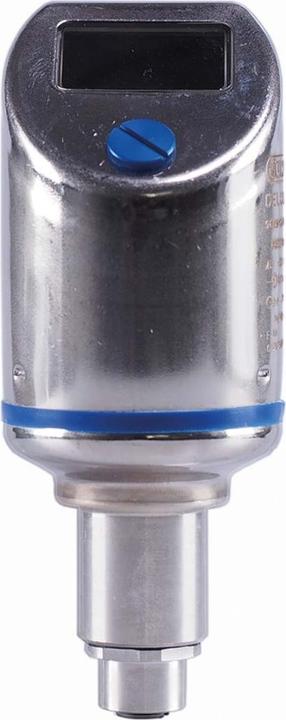

Jumo Temperature switch display

Jumo temperature switch indicator 00551004 Manufacturer :Jumo Designation :Temperature switch indicator M12 -50 - +500°C Type :00551004 Suitable as a monitor :no Suitable as a 2-point controller :yes Suitable as a limiter :no Max. Operating temperature :500 °C Adjustable switch-on temperature :-50 °C Adjustable switch-off temperature :150 °C Sensor design :PTC Rated control supply voltage Us at DC :12...30 V Electrical connection version :Flat plug connection Protection class (IP) :IP67 Electronic version :yes Explosion-proof :no Jumo temperature switch display 00551004: further details The high-precision electronic temperature switch basically consists of a stainless steel housing for the electronics and an LCD display. Various types of resistance thermometers for temperatures from -50 to +500 °C can be connected to an M12 x 1 mm plug connection. The electronic temperature switch is intended for industrial use and complies with European standards to ensure electromagnetic compatibility (EMC). The ambient temperature of the display housing is designed for a range of -20 to +75 °C. The device also has a 1× PNP switching output (binary output) and a configurable 1× analogue output (4 to 20 mA). The product is not intended for export to the USA. EAN: 4053877015727.
