Jumo Setpoint adjuster

Jumo Setpoint Controller 60002457

Manufacturer: Jumo
Designation: Setpoint Controller 50-300°C
Type: 60002457
Actuating Element Design: Rotary Knob
Suitable for Lighting: No
Color of Actuating Element: Black
Lens Shape: Round
Switch Function Latching: No
Push Button: No
With Front Ring: Yes
Material of Front Ring: Plastic
Color of Front Ring: Black

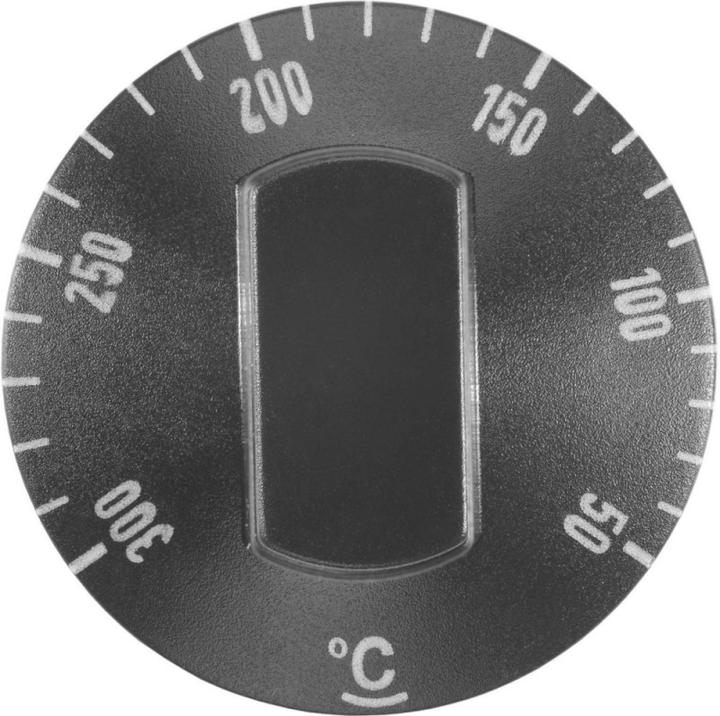

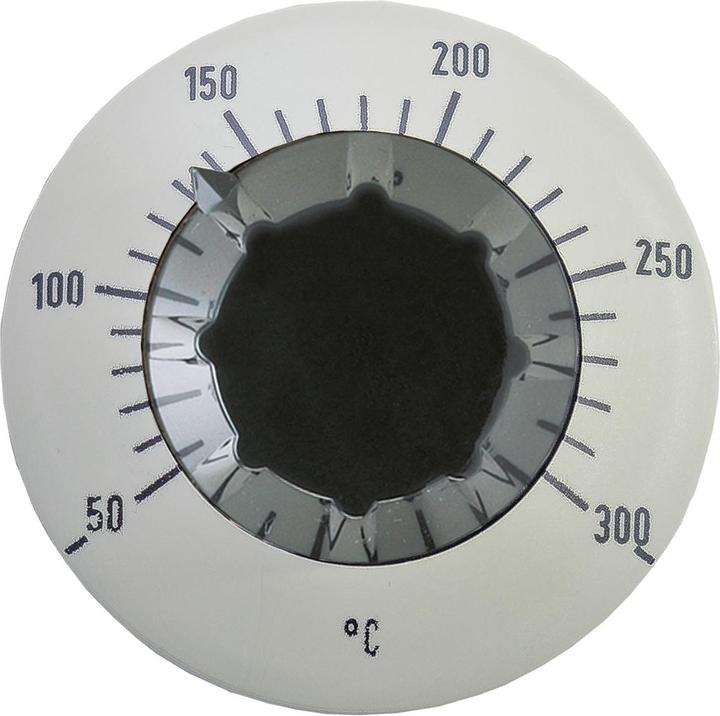

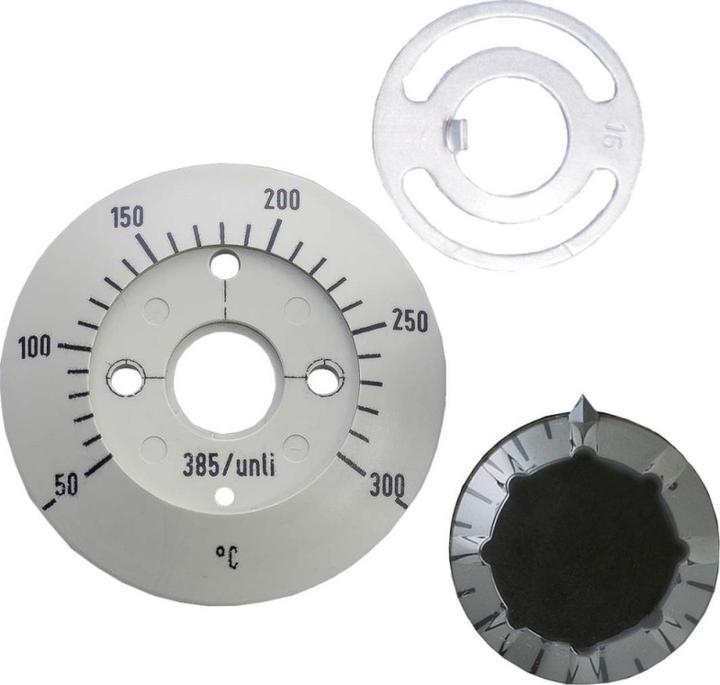

The setpoint controller set consists of an adjustment knob (slate gray RAL 7015, material thermoplastic), a scale (pebble gray RAL 7032, material thermoplastic), and two screws M3 x 8 according to DIN 84 (material nickel-plated brass). The hole spacing for mounting is 22 mm. The delivery also includes a metal disc, which allows for a maximum limit of the adjustable setpoint. The scale has a maximum adjustment range of 250 angular degrees. The setpoint controller is required for temperature adjustment in built-in thermostats that do not have their own adjustment scale.
