Product details
Output type = Analog
Supply voltage = 20 → 30 V ac/dc
Size = 96 x 96mm
Number of outputs = 2
Operating temperature min = -5°C
Operating temperature max = +55°C
Configurable outputs = 1 analog, 1 relay
Communication module available = Yes
Display type = LED display with 7 segments
Protection class = IP65
Range = Quantrol LC300
Panel depth = 80mm

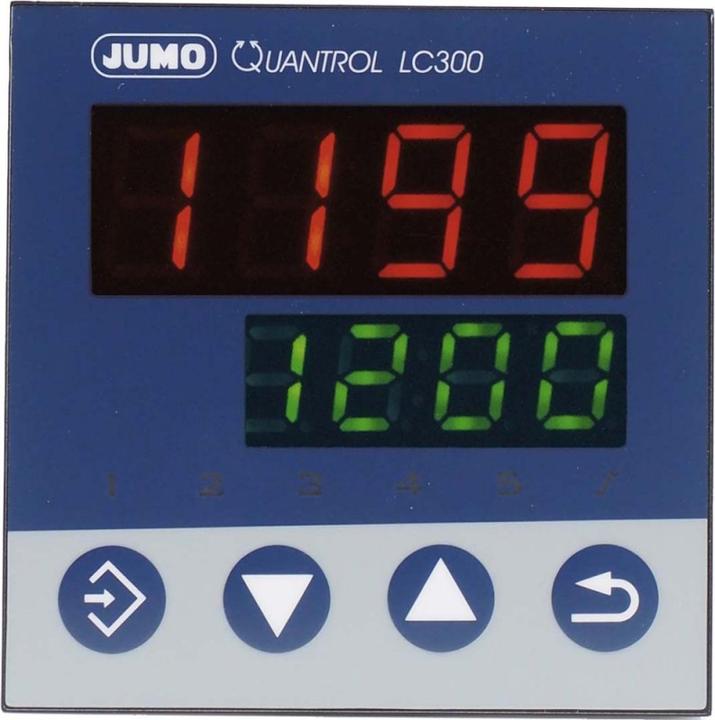

Quantrol LC series - PID controller. Jumo's Quantrol is a compact, user-friendly and self-optimizing controller series. The controller is used for two- and three-point control applications, as well as for controlling regulating valves and SCR power control units via a continuous control output. The universal analog input is for RTD temperature sensors, thermocouples and current / voltage signals and can be programmed by the user. 3 formats: 48 x 48 mm, 48 x 96 mm and 96 x 96 mm Two LED displays (red/green) with seven segments each Values can be displayed in °C or °F. LED status display for output Control with two/three states and continuous control (depending on version) Sensor monitoring Self-tuning (autotuning) for accurate PID control Manual/automatic mode Configurable limit monitoring (alarms) Setpoint for switching Step and key lock RS485 interface (Modbus RTU) Ramp and timer function Firing curve for ceramic furnaces Insertion of the controller by plug-in mounting Setup interface (USB Mini-B) USB cable also available (order no. ; 815-8832 815-8832 ).
