Jumo PID Controller 48x96mm 110-240Vac

Output type: Analog
Supply voltage: 110 to 240 V AC
Size: 48 x 96 mm
Number of outputs: 2
Minimum operating temperature: -5 °C
Maximum operating temperature: +55 °C
Configurable outputs: 1 Analog, 1 Relay
Communication module available: Yes
Display type: LED display with 7 segments
Protection class: IP65
Series: Quantrol LC200
Panel depth: 80 mm

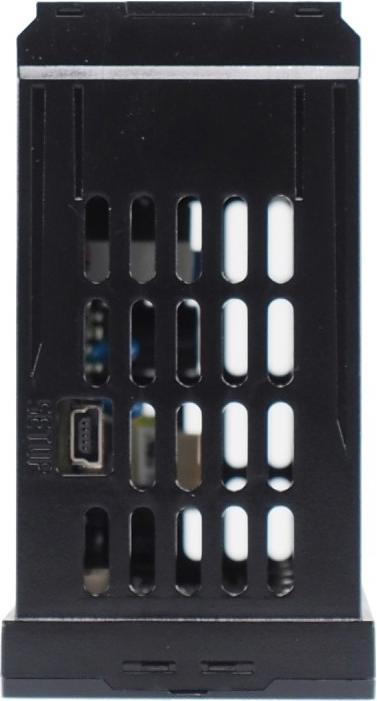

Quantrol LC Series – PID Controller. The Quantrol by Jumo is a compact, user-friendly, and self-optimizing controller series. The control unit is used for two- and three-point control applications as well as for controlling regulating valves and SCR power control units via a continuous control output. The universal analog input is designed for RTD temperature sensors, thermocouples, and current/voltage signals and can be programmed by the user. There are 3 formats: 48 x 48 mm, 48 x 96 mm, and 96 x 96 mm. Two LED displays (red/green) with seven segments each. Values can be displayed in °C or °F. LED status indicator for the output. Control with two/three states and continuous control (depending on the version). Sensor monitoring. Self-optimization (autotuning) for precise PID control. Manual/automatic mode. Configurable limit monitoring (alarms). Setpoint for switching. Step and key lock. RS485 interface (Modbus RTU). Ramp and timer function. Firing curve for ceramic kilns. Installation of the controller via plug-in mounting. Setup interface (USB Mini-B). USB cable also available.
