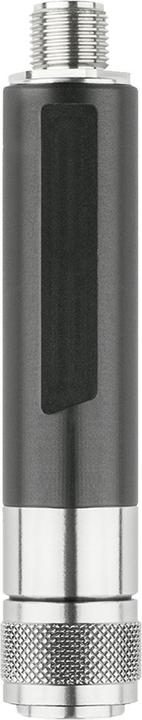

Jumo pH transmitter

Jumo pH transmitter 00652277 Manufacturer :Jumo Designation :pH transmitter w.Vario-Pin connection Type :00652277 Display :without multiple display :no Measuring range :-20..150 °C Thermocouple type B :no Thermocouple type E :no Thermocouple type J :no Thermocouple type K :no Thermocouple type N :no Thermocouple type R :no Thermocouple type S :no Thermocouple type T :no Thermocouple RTD :yes Measurement of the differential temperature :no Measurement of the relative humidity :no Measurement of the material moisture :no Relative humidity measurement :no Material moisture measurement :no Measured value memory :no Interface :yes Separate sensor :no Infrared measurement :no Jumo pH transmitter 00652277: more details The pH transmitter enables measured values to be transmitted from the sensor to the measuring/automation device via an analogue signal. The 2-wire transmitter transmits the measured values as a scalable standardised signal (4 to 20 mA) via an 8-pin M12 plug connection. It has a binary input that can be configured as a switchover signal for the analogue output value between pH measured value/temperature value and as a hold signal for the analogue output value. The transmitter can be screwed directly onto all pH electrodes with VP head and integrated Pt1000. The electrodes are calibrated either via the higher-level measuring system (PLC) or via the DSM (Digital Sensor Management) PC software directly on the transmitter. EAN: 4053877025252.
