Jumo Mantel-Thermoelement 90/00068437

Jumo Sheath Thermocouple 90/00068437

Manufacturer: Jumo
Designation: Sheath Thermocouple EL=500
Type: 90/00068437
For gas and oil burners: no
Suitable for other applications: yes
Length: 50 cm
Sensor class: Class 2
Temperature: -200 to 1200 °C
With pocket tube: no

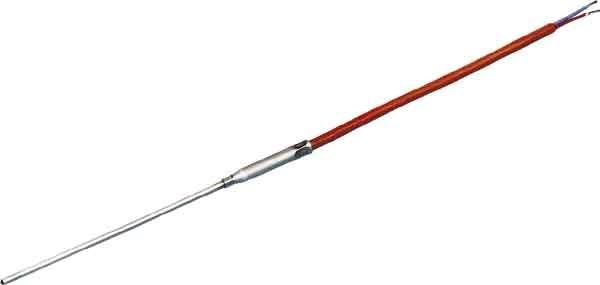

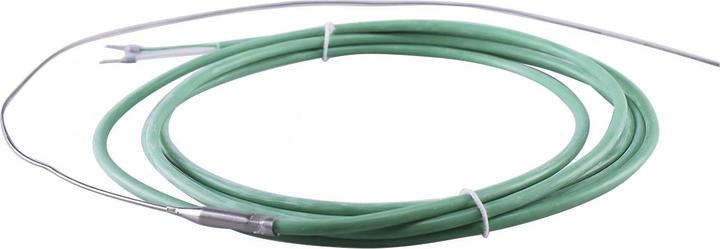

The insertable sheath thermocouple with a 2.5 m long compensating cable is suitable for temperature measurement in liquid and gaseous media using the Seebeck effect. Its shock-resistant design ensures a long service life. The good heat transfer between the sheath and the thermocouple allows for short response times and high measurement accuracy.

Due to its properties, the sheath thermocouple is frequently used in chemical plants, power plants, pipelines, engine construction, and testing stands. The single thermocouple 1x NiCr-Ni K according to DIN EN 60584 (Class 2) is designed for temperatures from -200 to +1200 °C. The protective tube is made of Inconel 2.4816 material.

For electrical connection, a silicone-insulated compensating cable is used, which withstands ambient temperatures from -50 to +180 °C. The connection ends are equipped with ferrules. The dimensions of the protective tube are 1.5 x 500 mm. The minimum bending radius is 5× outer diameter. The thermocouple is factory-insulated from the sheath. EAN: 4053877003274.
