Jumo Laboratory controller

Jumo Laboratory Controller 00474651

Manufacturer: Jumo
Designation: Laboratory Controller with Semiconductor Relay Output
Type: 00474651
Suitable as a Guardian: no
Suitable as a 2-Point Controller: yes
Suitable as a Limiter: no
Max. Operating Temperature: 40 °C
Device Design: Panel Mount
Sensor Type: PTC
Rated Control Supply Voltage Us at AC 50 Hz: 110..240 V
Electrical Connection Type: Other
Protection Class (IP): IP30
Electronic Design: yes
Explosion-Proof: no

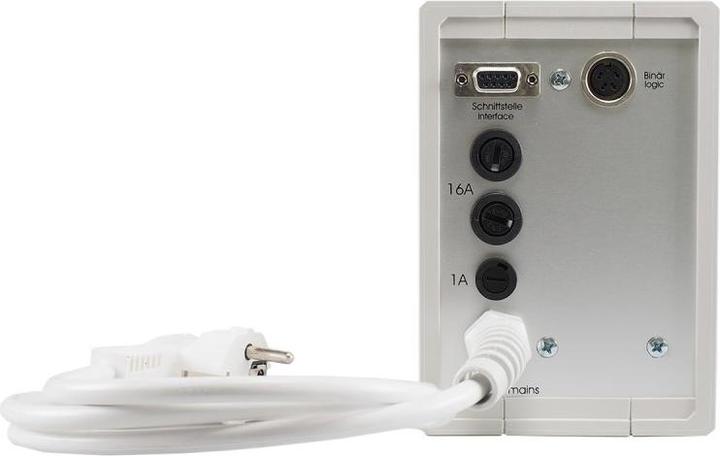

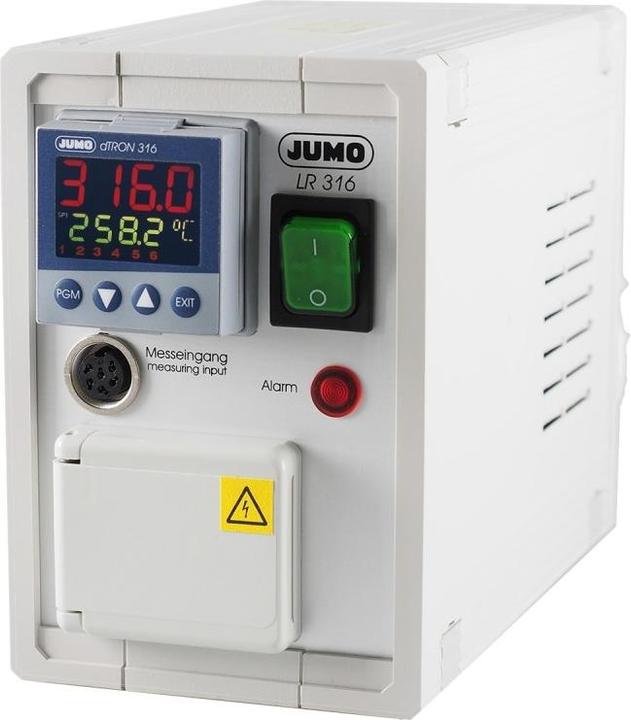

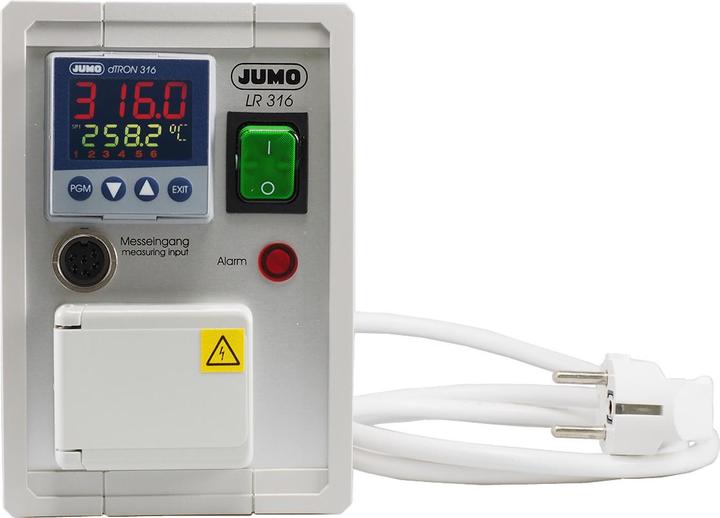

The laboratory controller is primarily used for temperature control of heating plates, heating coils, temperature baths, and heat ovens in laboratories and production. The built-in compact controller meets a variety of technical requirements. It is operated, parameterized, and configured using just four buttons on the splash-proof front panel. The space-saving ABS plastic housing has dimensions of: W=180 mm, H=170 mm, D=200 mm. The compact controller, round connector for sensors, the ON-OFF switch, and the optical over-temperature indicator are integrated into the front panel. The control outputs and fuses are accessible from the back. The front-mounted protective contact socket (load circuit up to 10 A) is switched via a semiconductor relay. This allows for contactless switching of the load output, which acts as a zero-voltage switch to avoid interference voltages. EAN: 4053877010036.
