Jumo Display unit/controller

Jumo Display/Controller 00528719

Manufacturer: Jumo
Designation: Display/Controller
Analog Outputs: 1
Relay Type: 00528719
Display: digital
Multiple Display: yes
Measuring Range: -20 to 250 °C
Thermocouple Type B: yes
Thermocouple Type E: yes
Thermocouple Type J: yes
Thermocouple Type K: yes
Thermocouple Type N: yes
Thermocouple Type R: yes
Thermocouple Type S: yes
Thermocouple Type T: yes
RTD Thermocouple: yes
Differential Temperature Measurement: no
Relative Humidity Measurement: yes
Material Moisture Measurement: no
Measured Value Storage: yes
Interface: yes
Separate Sensor: no
Infrared Measurement: no

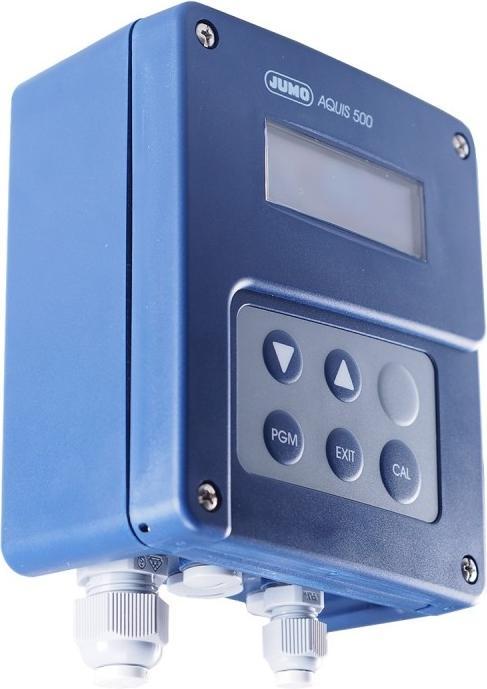

This display/controller for unit signals in an IP 67 housing features a backlit LC display with clear text operation. The operating languages are switchable. The device has 2 analog and 1 binary input. The first analog input is suitable for connecting unit or standard signals (0/4 to 20 mA or 0 to 10 V), which can be provided by any sensor. The second analog input can be connected to resistance thermometers Pt100, Pt1000, or NTC/PTC (up to 4 kOhm). The power supply for a 2-wire transmitter is integrated into the device. Both an analog output and a relay (changeover) are provided. The power supply is via a switching power supply AC 110 to 240 V +10 / -15 %, 48 to 63 Hz. A setup interface as well as a binary input are also available. EAN: 4053877005216.
