Jumo Bayonet counterpart

Jumo Bayonet Counterpart (RD) 00447366

Manufacturer: Jumo
Designation: Bayonet Counterpart (RD)
Diameter: 12/8.5 mm
Length: 60/10 mm
Type: 00447366
Accessory/Spare Part Type: other
Accessory: yes
Spare Part: no

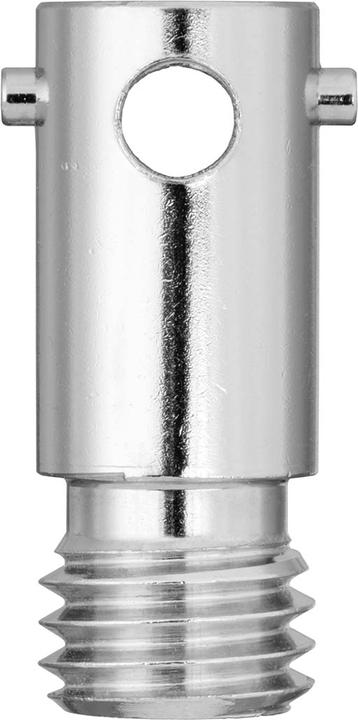

The bayonet counterpart in round design (RD) is made of material No. 2.0401.20, nickel-plated brass. It features a process connection with a thread M12 x 1 and a screw-in length of 10 mm. The counterpart is used for a 12 mm bayonet closure for the installation of plug-in resistance thermometers and thermocouples. The outer diameter is 12 mm and the inner diameter is 8.5 mm. The total length of the counterpart is 60 mm.
