Jumo 702110/8-0300-23/000

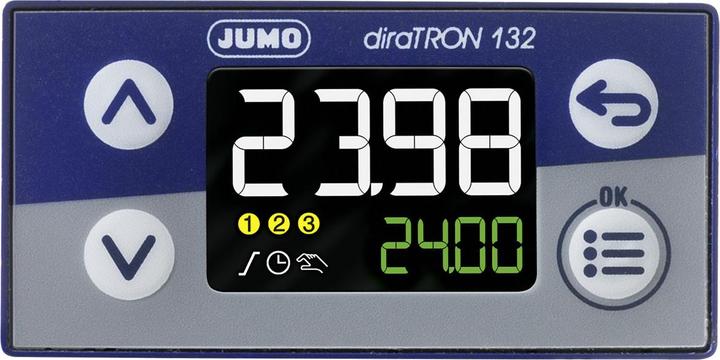

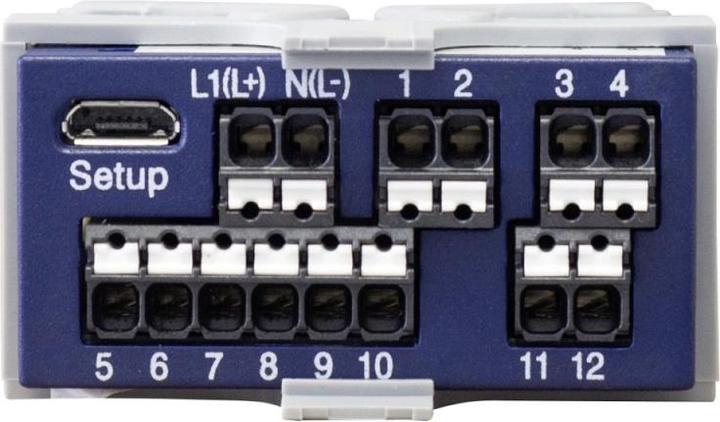

Jumo compact controller 00680784 Manufacturer :Jumo Designation :Compact controller 1 analogue output Type :00680784 Electrical connection type :Spring-loaded connection Rated control supply voltage Us at AC 50 Hz :110...240 V Rated control supply voltage Us at AC 60 Hz :0 V Rated control supply voltage Us at DC :0 V Voltage type for actuation :AC/DC With detachable terminals :no Number of measuring circuits :1 Error storage possible :no External reset possible :no Number of contacts as normally open :1 Temperature measuring range :-270..2500 °C Resistance measuring range :0..4000 Ohm Width :48 mm Height :24 mm Depth :89 mm Jumo compact controller 00680784: further details The compact controller is part of a controller series which can be used universally and in different DIN formats for controlling temperature, pressure or, for example, flow. It is suitable for front installation. The controller is also characterised by simple, clearly structured operation supported by texts. Process values and parameters are displayed by two 18-segment LCD displays. In addition, the version has individual display elements for the switching positions of the outputs as well as for manual mode, ramp function and timer. The controller also has a self-optimisation function and a programme controller. The limit value monitoring function, digital control signals and a service counter round off the controller's features. With the aid of the setup program (including program editor and ST editor), the controller can be conveniently configured with a PC. No separate power supply is required during configuration via the USB interface (USB-powered). Operation is via a membrane keypad with four keys and, thanks to the high IP65 protection rating, can also be used in harsh environments. Depending on the hardware version, the unit can be used as a two-point controller, three-point controller, three-point stepping controller or continuous controller. The PID controller has a universal input, a relay output (normally open contact), a digital input, a digital input or output and an analogue output. The power supply range is AC 110 to 240 V, 48 to 63 Hz. , EAN: 4053877025801.
