Jumo 575358

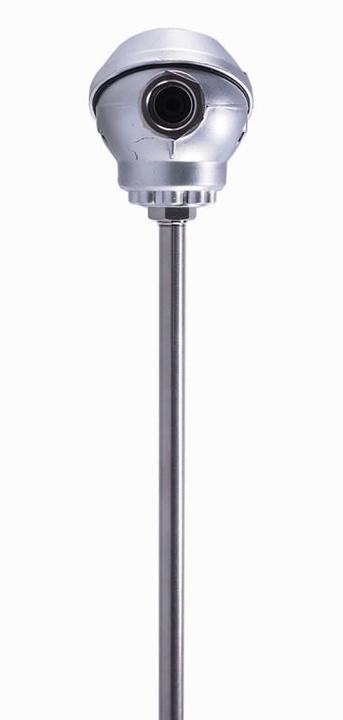

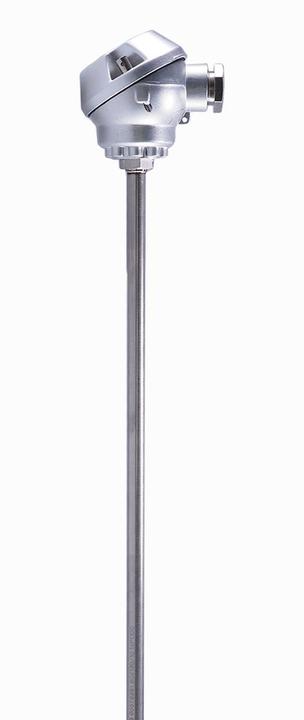

Jumo Resistance Thermometer 00575358

Manufacturer: Jumo
Designation: Resistance thermometer 8x150mm, -50 to +200°C
Type: 00575358
Design: Clamp
Measuring range: -50 to 200 °C
Material: Stainless steel
Probe length: 150 mm

The insertable resistance thermometer allows for temperature measurement in gaseous and liquid media, based on the temperature dependence of the electrical resistance of its built-in platinum sensor. The proven insertable design ensures reliable sealing under both negative and positive pressure. Therefore, the resistance thermometer is particularly well-suited for applications in climate and refrigeration technology, as well as in heating, oven, and apparatus construction.

The resistance thermometer according to DIN EN 60751 (Class B) is designed as 1 x Pt100 in a two-wire configuration and is suitable for temperatures ranging from -50 to +200 °C. The continuous protection tube, measuring 8.0 x 150 mm, is made of stainless steel 1.4571 and protects the measuring element against chemical influences and mechanical damage. The connection head in shape J is made of aluminum die-cast, features a cable gland M16 x 1.5, and withstands temperatures from -40 to +100 °C.
