Joy-it Button22T-01 Switch momentary Red, Blue (Ø x L) 22 mm x 38 mm IP68, IK
Minimum order 2Delivered Wed, 8.4.
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–
Product details

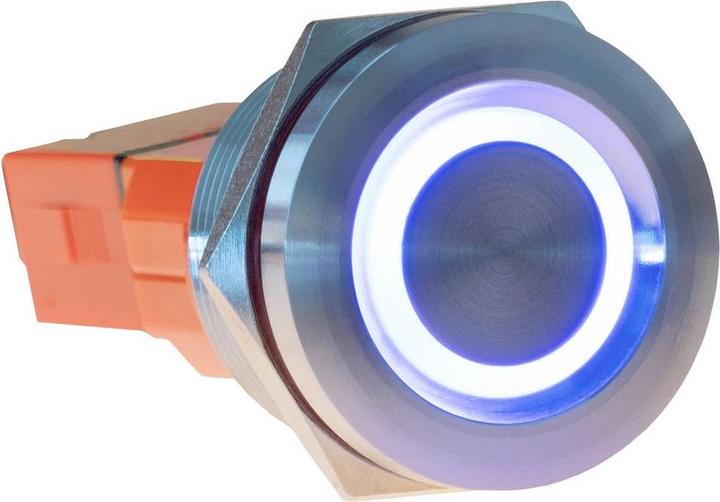

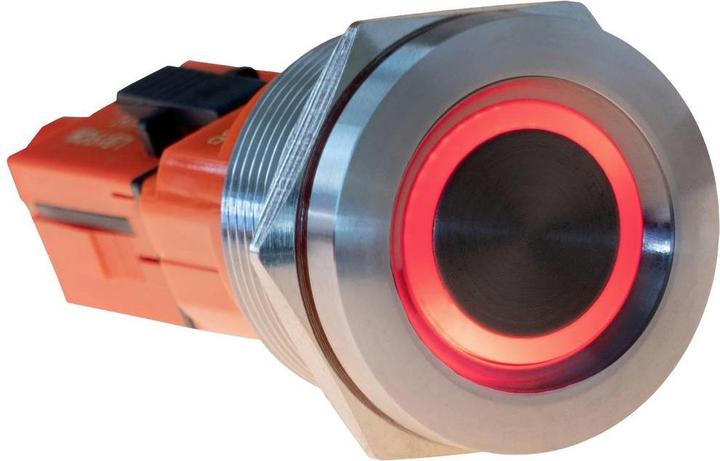

Our tactile touch stainless steel button impresses with high-quality materials, protection classes, and ergonomics. It is made of stainless steel and meets the protection classes IP68 (dust and water), IK10 (impact), and PA66 (flame). Due to its protection classes and durability, our stainless steel button is suitable for many applications. The button features a bright LED ring that can illuminate in two different colors (red and blue). This serves to identify whether the touch switch detects a touch or is activated. The necessary connection cables, socket, sealing ring, and nut are already included in the delivery.
Colour | Silver |
Switch + button type | Push-button switch |
Mounting type | Built-in installation |
Width | 22 mm |
Diameter | 22 mm |
Item number | 24894081 |
Manufacturer | Joy-it |
Category | Buttons + Switches |
Manufacturer no. | Button22T-01 |
Release date | 23.3.2023 |
Minimum order | 2 |
Colour | Silver |
Exact colour description | Silver |
Material group | Metal |
Material | H65 gold-plated, Stainless steel |
Switch + button type | Push-button switch |
Operating mode | Key |
Mounting type | Built-in installation |
LED colour | Blue, Red |
Nominal voltage | 24 V |
Nominal current | 2 A |
Protection type (IP code) | IP68 |
Switch + push-button Additional function | Lighting |
Country of origin | China |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 0.92 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |

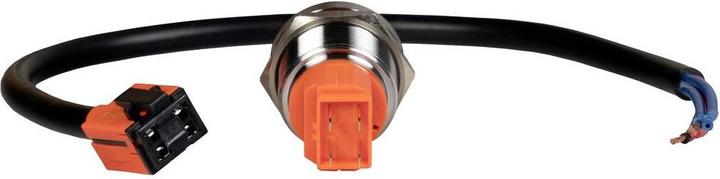

Scope of delivery | Bush, Connection cable, Sealing ring and nut |
Length | 38 mm |
Width | 22 mm |
Height | 38 mm |
Diameter | 22 mm |
Specifications may include unverified machine translations.
