Joy-it BUTTON22C-M-RD Push-button switch 250 V/AC 15 A 1 x On/(Off) IP67, IK10 momentary 1 pc.

Minimum order 2
Delivered Wed, 8.4.
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–

Product details

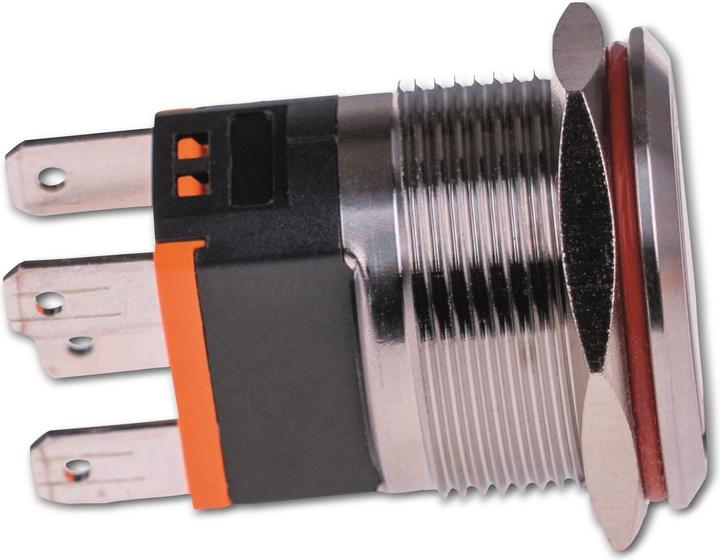

Our resting steel push button impresses with high-quality materials, protection classes, and ergonomics. It is made of stainless steel and meets the protection classes IP67 (dust and water), IK10 (impact), and PA66 (flame). Due to its protection classes, wide temperature range, and durability, our steel push button is suitable for many applications. The push button features a bright LED ring (red). The concave design of the surface eliminates sharp edges. The connection cables and sockets come in different colors and shapes to prevent confusion between the button variants (22A / 22B / 22C). The package includes the necessary connection cables, socket, sealing ring, and nut.

Key specifications

Colour
Silver
Switch + button type
Push-button switch
Mounting type
Built-in installation
Width
25 mm
Diameter
25 mm

General information

Item number
21607599
Manufacturer
Joy-it
Category
Buttons + Switches
Manufacturer no.
BUTTON22C-M-RD
Release date
12.8.2021
Minimum order
2

Colour

Colour
Silver
Exact colour description
Silver

Material

Material group
Metal
Material
Stainless steel

Switch + push-button Features

Switch + button type
Push-button switch
Operating mode
Key
Number of actuation levels
1x
Mounting type
Built-in installation
Mounting type
Screw fastening
LED colour
Red
Number of poles
2x
Nominal voltage
250 V
Nominal current
15 A
Max. Switching capacity
250 W
Protection type (IP code)
IP67
Switch + push-button Additional function
Acoustic feedback

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
95.84 kg
Climate contribution
CHF 0.72

Smart home features

Smart home
Compatible

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery

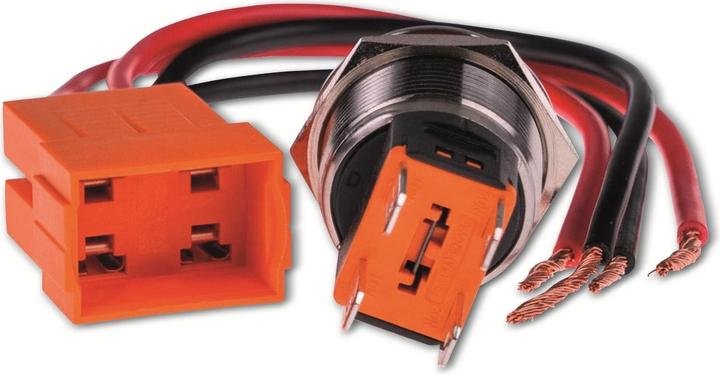

BushConnection cableDamPacking ringSteel pushbutton

Product dimensions

Length
48.50 mm
Width
25 mm
Height
34.50 mm
Diameter
25 mm
