Jeti Receiver REX 7 A40 duplex
Delivered between Wed, 9.9. and Wed, 16.9.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
free shipping
Product details

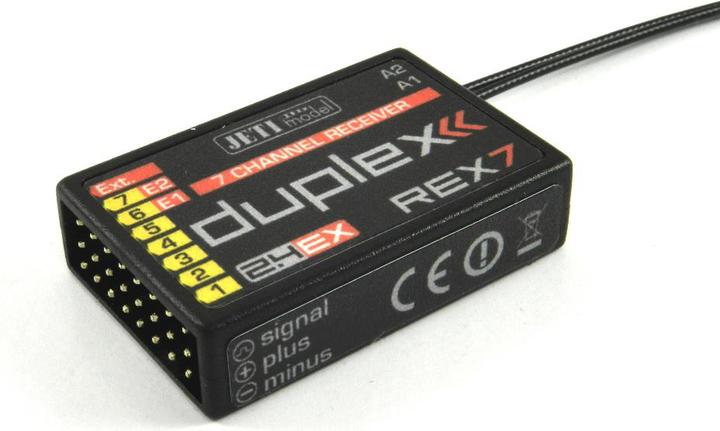

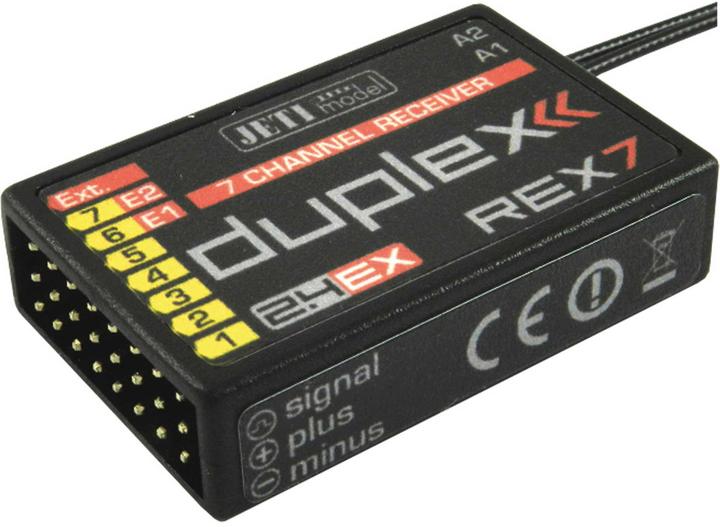

Duplex 2.4EX Receiver REX 7 A40 with 400 mm long antennas!
Features:
- The new generation of receivers
- Integrated expander for up to 3 sensors
- Supported protocols: PPM, EXBUS, EX, UDI
- Programmable functions of the slots
- Support for direct inputs
- Compact dimensions
- 32-bit processor
- Full range
- Programmable via the JETIBOX and wirelessly via the Duplex DC/DS transmitters
- Internal memory for data logging and control signals (evaluation in preparation)
- Ideal for use in combination with external "servo switches" when connected via Jeti Ex Bus and additional sensors
Additional technical data:
- Telemetry: Yes
- Temperature range [°C]: -10 ... 85
- Compatible protocols: DUPLEX 2.4GHz EX, EX Bus, UDI
- Antenna length [mm]: 2 x 400
- Voltage range [V]: 3.2 - 8.4
- Current consumption [mA]: 30
- Satellite receiver connection: Yes
- Output power [dBm]: 15
- Reception sensitivity [dBm]: -106.
Frequency | 2.40 GHz |
conduits | 7 |
Operating voltage | 3.50 V |
Item number | 10082420 |
Manufacturer | Jeti |
Category | RC receivers |
Manufacturer No. | 80001246 |
Release date | 9.11.2018 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Frequency | 2.40 GHz |
conduits | 7 |
Operating voltage | 3.50 V |
Country of origin | Germany |
CO₂ emissions | 0.09 kg |
Climate contribution | CHF 0.11 |
Scope of delivery | Recipient |
Length | 4.20 cm |
Width | 2.80 cm |
Height | 1.10 cm |
Weight | 16 g |
Length | 15 cm |
Width | 10 cm |
Height | 2.50 cm |
Weight | 68 g |
Specifications may include unverified machine translations.
