Issendorff Switching and LCN-SH dimming module for the top-hat rail

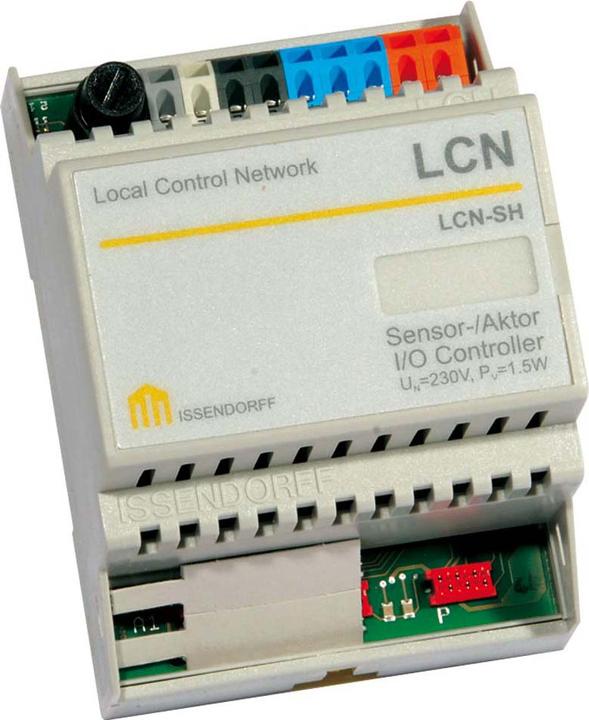

LCN-SH Switching and Dimming Module for DIN Rail

Description: The LCN-SH Standard DIN Rail Module is a sensor-actuator module of the LCN bus system. It features two switchable or dimmable electronic outputs at 230V and two simulated outputs. Additionally, the LCN-SH has T-, I-, and P-connections for integrating further LCN sensors and actuators. The internal operating program can be freely parameterized using the LCN system software LCN-PRO. It is typically mounted on a DIN rail in distribution cabinets, but direct mounting is also possible.

Areas of Application: High-quality lighting control at theater level, complex lighting effects realizable, daylight-dependent lighting regulation, control of shading systems and conservatories, for up to 4 motor pairs with LCN-R4M2H individual room control: cooling, heating, ventilation. Access control with IR remote control and transponder, automation controls with multiple timers and links, hierarchical linking of permissions.
