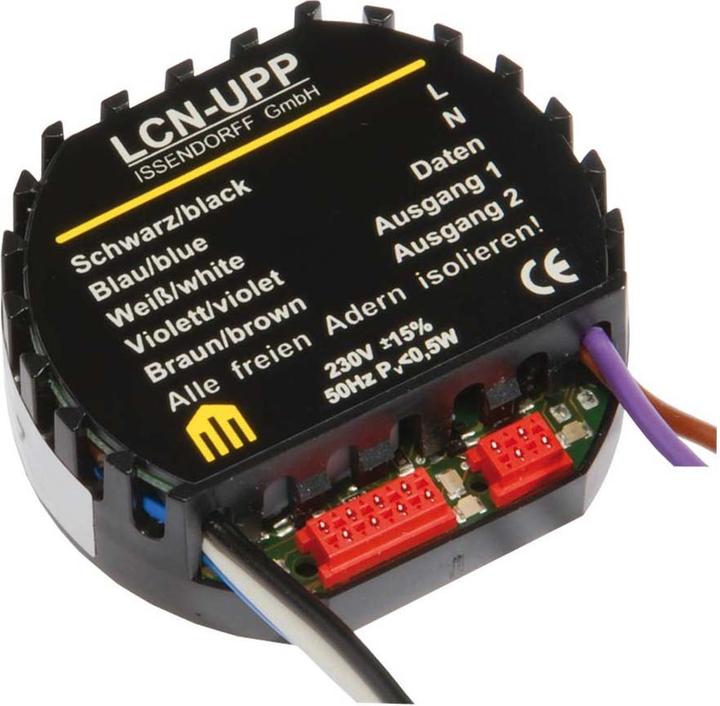

Issendorff LCN-UPP flush-mounted module with extended programming

The LCN-UPP in-wall module is a sensor-actuator module of the LCN bus system. It features two switchable or dimmable electronic outputs for 230 V. Two additional outputs are simulated and not externally accessible, but can be used for programming. Furthermore, the LCN-UPP has T- and I-connections for connecting additional LCN sensors and actuators. The internal operating program can be freely parameterized with the LCN system software LCN-PRO. The LCN-UPP is installed decentral in deep switch, distribution, or electronic boxes.

Application areas:

• High-quality lighting control at theater level with elaborate lighting effects.
• Control of shading systems such as blinds or roller shutters.
• Individual room control for cooling, heating, or ventilation.
• Access control with IR remote control and transponder.
• Automation controls with multiple timers and links.
• Control panels with four status LEDs and hierarchical links of permissions and displays.
• Alarm systems, including multiple zones and complex conditions, block lock, pre-alarm, etc.
• Links across trades: lighting, shading, alarm, access, etc.
• High functionality with cost-effective multiple use of sensors and actuators.

All functions can be used independently and are therefore available simultaneously.
