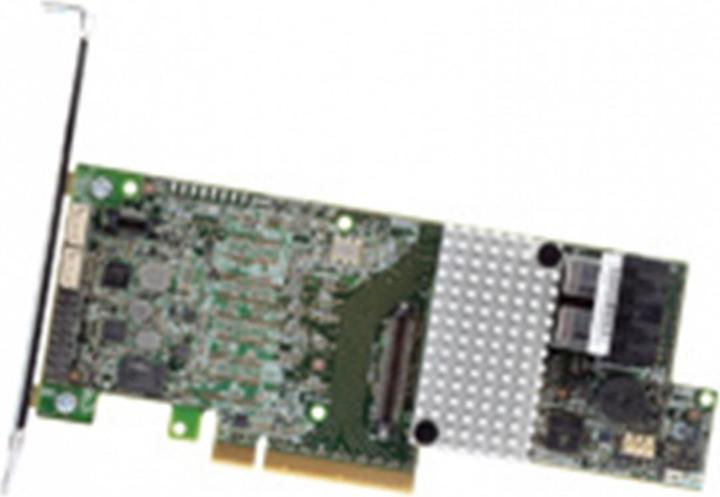

Intel RAID Controller RS3DC080

Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

Mainstream 12Gb/s SAS-3 intelligent RAID adapters with 4 or 8 ports.

  • LSI SAS3108 RAID-on-chip (ROC) controller providing SAS 3.0 capability, including 12Gb/s data transfer.
  • Embedded 1GB 1866 MHz cache (ECC DDR3 memory) to efficiently store data in transition.
  • One or two HD small form factor (SFF) 8643 SAS/SATA connectors for up to eight internal ports.
  • x8 PCI Express Generation 3 interface for fast communication with the server board.
  • Intel RAID SSD Cache with Fast Path I/O.
  • Speaker for audible alerts.
  • Optional Intel RAID Maintenance Free Backup offering cache protection with up to five years service life.
  • Optional Intel RAID cable kit AXXCBL650HDMS includes two 650mm cables with HD SFF 8643 mini-SAS to 8087 mini-SAS connectors.

Exceptional data protection. Supports data redundancy using SAS or SATA hard disk drives through mirroring, parity, and double parity (RAID levels 1, 5, and 6) plus striping capability for spans (RAID levels 10, 50, and 60).

Excellent performance. A dual core LSI SAS3108 ROC, x8 PCI Express Generation 3 host interface, and 1GB of 1866 MHz cache enhance the performance of mainstream applications. Outstanding availability. Delivers proactive drive monitoring and automatic error correction. A new battery (optional accessory) offers multiple operating modes including high heat tolerance and five year service life options.

Fast Path I/O included. The technology is designed to dramatically boost transactional application throughput, delivering up to 750,000 I/Os per second (IOPS) in RAID mode.

Key specifications

Internal connection options
S-ATA III (1x), SAS (1x)
Expansion slot
PCI Express x8 (1x)
Number of connectable hard disks
128 x
RAID configuration
0, 1, 10, 5, 50, 60
Controller type
RAID controller
Item number
5339479

General information

Manufacturer
Intel
Category
Storage controller
Manufacturer no.
RS3DC080
Release date
29.7.2015

Controller properties

Controller type
RAID controller
Expansion card form factor
Low profile
Number of ports
8 Ports
Number of connectable hard disks
128 x
RAID configuration
0, 1, 10, 5, 50, 60

Internal interfaces

Expansion slot
PCI Express x8 (1x)
Internal connection options
S-ATA III (1x), SAS (1x)

Memory

Memory capacity (RAM)
1024 MB
Memory type
DDR3-RAM
Clock frequency
1866 MHz

Scope of delivery

Scope of delivery
Low Profile Aperture

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
168 mm
Width
145 mm
Weight
456 g

Package dimensions

Length
23 cm
Width
14.50 cm
Height
6 cm
Weight
282 g
