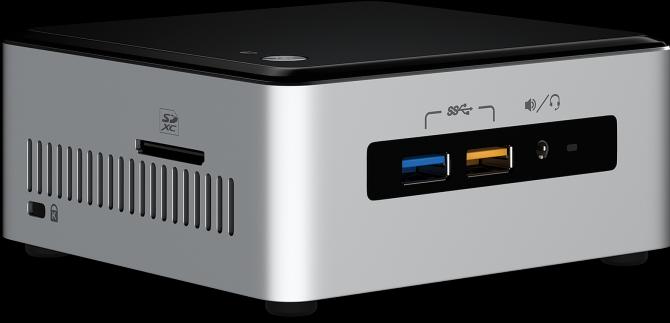

Intel Nuc Swift Canyon Nuc6i5syh

Intel Core i5-6260U
16Ratings
Currently out of stock

Product details

The Intel NUC Kit NUC6i5SYH is based on Intel's latest architecture and is equipped with a sixth-generation Intel Core i5-6260U processor. With support for 4K displays, the Intel Iris Graphics 540 delivers an immersive gaming and home theater experience with phenomenal picture quality. The NUC6i5SYH has space for a 2.5-inch hard drive, which can be used as additional data storage, and an M.2 SSD for lightning-fast data transfer. Designed for Windows 10, the NUC6i5SYH provides the performance features you need for media streaming, spreadsheets, or creating presentations.

Key specifications

Number of processor cores
2 -Core
Graphics card model
Iris Graphics 540
Internal connection options
M.2 (1x), S-ATA III (1x)
Network connections
RJ45 (1x)
Video connections
HDMI (1x), Mini DisplayPort (1x)
Memory type
DDR4-RAM
USB ports
USB-A
Item number
5670885

General information

Manufacturer
Intel
Category
Barebones
Manufacturer no.
BOXNUC6I5SYH
Release date
4.1.2016
External links
Manufacturer's site (de), Specifications (de)

Barebone properties

Design
Small Form

Processor

Processor type
Intel Core i5-6260U
Clock frequency
1.90 GHz
Number of processors
1 x
Number of processor cores
2 -Core
Number of threads
4
Socket
LGA 1356
Max. turbo clock rate
2.80 GHz
Max. TDP
15 W
Processor properties
64-bit architecture, Direct I/O Virtualization Technology (VT-d), Intel Virtualisation Technology (VT-x), Onboard processor

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Number of pins
260 x
Memory Slots available
2
Max. memory slots
2
Max. RAM
32 GB
Memory voltage
1.20 V

Graphics card properties

Graphics card model
Iris Graphics 540
Max. connected monitors
2 x

Internal connections

Internal connection options
M.2 (1x), S-ATA III (1x)
RAID configuration
0, 1
"Number of 2.5"" drive slots"
1 x

External connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x), USB-A 3.0 (4x)

Network

Network connections
RJ45 (1x)
Max. port speed
1000 Mbit/s

Wireless transmission

Connectivity
Bluetooth, WLAN
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac
Bluetooth version
4.1

Video connections

Video connections
HDMI (1x), Mini DisplayPort (1x)

Audio connections

Audio outputs
3.5mm jack (1x)

Card reader properties

Memory card type
SDXC

Power supply properties

Power
65 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
External power supply, VESA kit

Product dimensions

Width
111 mm
Length
115 mm
Height
48 mm

Package dimensions

Length
13.50 cm
Width
13 cm
Height
12 cm
Weight
1.14 kg
