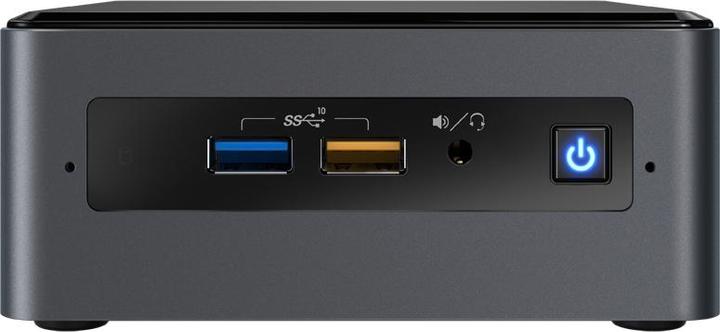

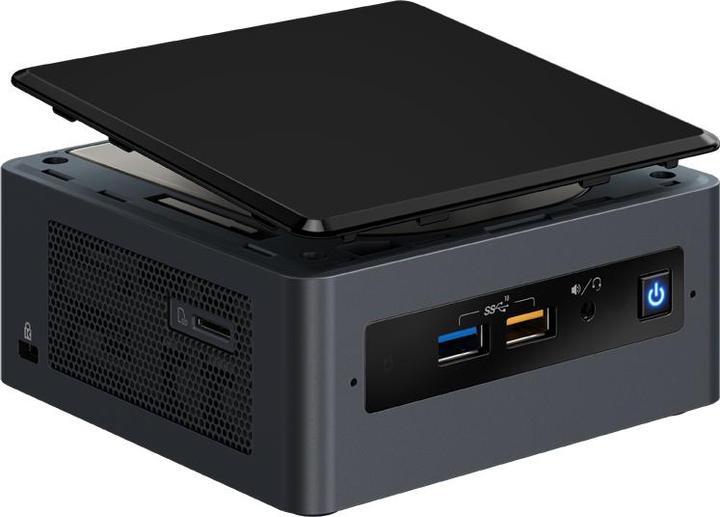

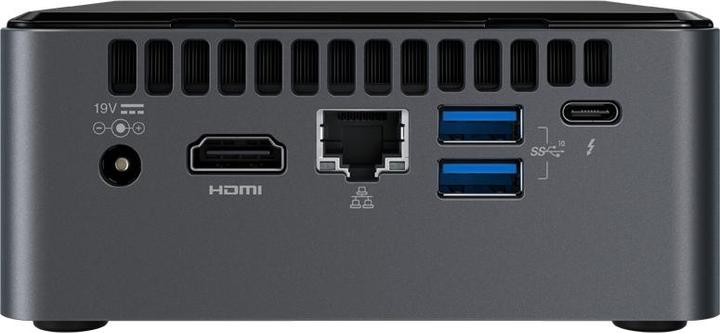

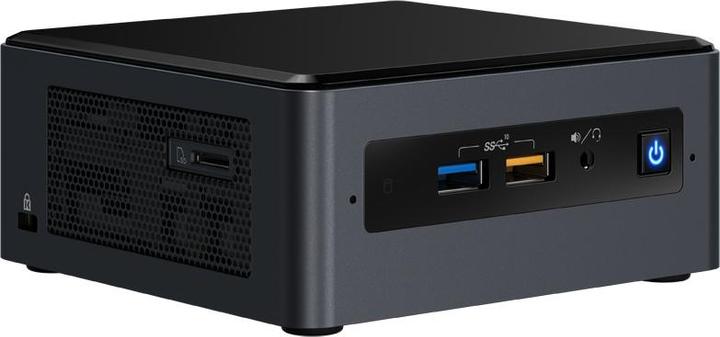

Intel NUC NUC8i3BEH2 - Bean Canyon

Intel Core i3
21Ratings
Currently out of stock

Product details

The NUC equipped with an Intel Core i3-8109U processor (3.00 GHz) provides a fully scalable and comprehensive computing unit in the smallest possible format. Even more impressive is the fact that such a small product can deliver so much power in a flexible and customizable format.

Key specifications

Number of processor cores
2 -Core
Graphics card model
Iris Plus Graphics 655
Internal connection options
M.2 (1x), S-ATA III (1x)
Network connections
RJ45 (1x)
Video connections
HDMI (1x)
Memory type
DDR4-RAM
USB ports
Thunderbolt 3, USB-A
Item number
9877637

General information

Manufacturer
Intel
Category
Barebones
Manufacturer no.
BOXNUC8I3BEH2
Release date
9.10.2018

Barebone properties

Design
Small Form

Processor

Processor type
Intel Core i3
Clock frequency
3 GHz
Number of processors
1 x
Number of processor cores
2 -Core
Number of threads
4
Socket
BGA 1528
Max. turbo clock rate
3 GHz
Max. TDP
28 W
Processor properties
Intel Virtualisation Technology (VT-x)

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Number of pins
260 x
Memory chip compatibility
DDR4-2400
Memory Slots available
2
Max. memory slots
2
Max. RAM
32 GB
Memory voltage
1.20 V

Graphics card properties

Graphics card model
Iris Plus Graphics 655
Max. connected monitors
3 x

Internal connections

Internal connection options
M.2 (1x), S-ATA III (1x)
RAID configuration
0, 1
"Number of 2.5"" drive slots"
1 x

External connections

USB ports
Thunderbolt 3, USB-A
Exact USB ports
Thunderbolt 3 (1x), USB-A 3.1 Gen 1 (4x)

Network

Network connections
RJ45 (1x)
Max. port speed
1000 Mbit/s

Wireless transmission

Connectivity
Bluetooth, WLAN
Wi-Fi standard
Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac
Bluetooth version
5.0

Video connections

Video connections
HDMI (1x)

Audio connections

Audio outputs
3.5mm jack (1x)

Card reader properties

Memory card type
microSDXC

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Mini PC barebone

Product dimensions

Weight
1330 g
Width
117 mm
Length
112 mm
Height
51 mm

Package dimensions

Length
15.50 cm
Width
12.80 cm
Height
11.70 cm
Weight
1.33 kg
