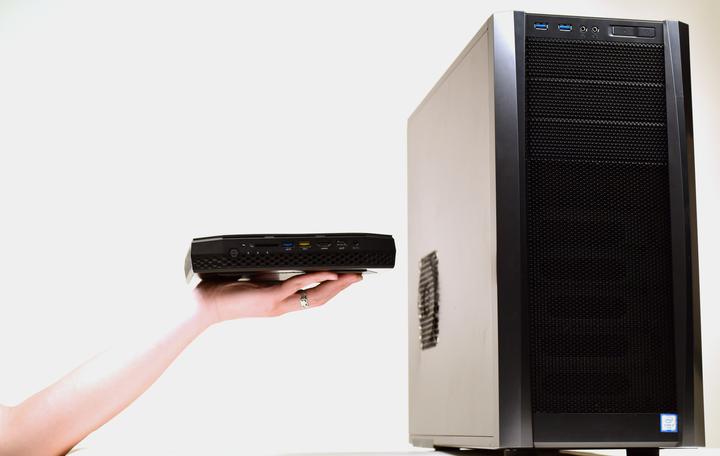

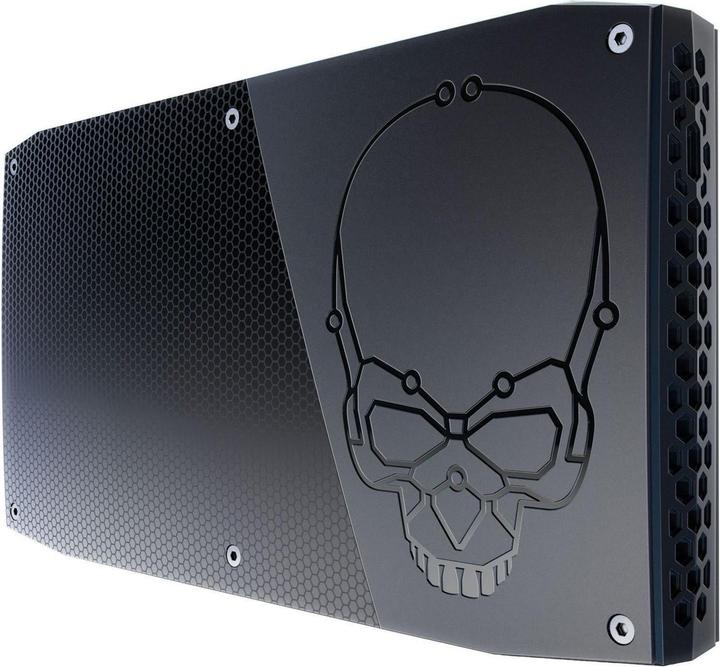

The Intel NUC 7 Essential offers impressive graphics capabilities and responsive performance in a compact size. Equipped with an Intel processor, the NUC provides a fully scalable and comprehensive computing unit in the smallest possible format.
Number of processor cores | 4 -Core |
Graphics card model | Radeon RX Vega M GL |
Internal connection options | M.2 (2x), S-ATA III (2x) |
Network connections | RJ45 (2x) |
Video connections | HDMI (2x), Mini DisplayPort (2x), Thunderbolt (2x) |
Memory type | DDR4-RAM |
USB ports | Thunderbolt 3, USB-A |
Documents | |
Item number | 8361336 |
Manufacturer | Intel |
Category | Barebones |
Manufacturer no. | BOXNUC8I7HNK2 |
Release date | 16.4.2018 |
Design | Ultra Slim |
Processor type | Intel Core i7-8705G |
Clock frequency | 3.10 GHz |
Number of processors | 1 x |
Number of processor cores | 4 -Core |
Number of threads | 8 |
Socket | BGA 2270 |
Max. turbo clock rate | 4.10 GHz |
Max. TDP | 65 W |
Processor properties | 64-bit architecture, Direct I/O Virtualization Technology (VT-d), Intel Virtualisation Technology (VT-x) |
Memory type | DDR4-RAM |
Memory form factor | SO-DIMM |
Number of pins | 260 x |
Memory chip compatibility | DDR4-2400 |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 32 GB |
Memory voltage | 1.20 V |
Graphics card model | Radeon RX Vega M GL |
Hardware application range | Beginner, Gaming |
Max. connected monitors | 6 x |
Internal connection options | M.2 (2x), S-ATA III (2x) |
RAID configuration | 0+1 |
"Number of 5.25"" drive slots" | 0 x |
Number of 3.5" drive slots (internal) | 0 x |
Number of 3.5" drive slots (external) | 0 x |
"Number of 2.5"" drive slots" | 0 x |
USB ports | Thunderbolt 3, USB-A |
Exact USB ports | Thunderbolt 3 (2x), USB-A 3.1 Gen 1 (1x) |
Network connections | RJ45 (2x) |
Max. port speed | 1000 Mbit/s |
Connectivity | Bluetooth, WLAN |
Wi-Fi standard | Wi-Fi 5 / 802.11ac |
Wi-fi frequency | 2.4 GHz, 5 GHz |
Bluetooth version | 4.2 |
Video connections | HDMI (2x), Mini DisplayPort (2x), Thunderbolt (2x) |
Audio outputs | 3.5mm jack (1x) |
Memory card type | SDXC |
Power | 230 W |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x power supply |
Width | 221 mm |
Length | 142 mm |
Height | 39 mm |
Length | 35 cm |
Width | 25 cm |
Height | 16 cm |
Weight | 2.41 kg |
