Intel NUC Bean Canyon NUC8i5BEK2

Intel Core i5-8259U
32Ratings
Currently out of stock

Product details

The NUC equipped with an Intel Core i5-8259U processor (2.30 GHz) provides a fully scalable and comprehensive computing unit in the smallest possible format. Even more impressive is the fact that such a small product can deliver so much power in a flexible and customizable format.

Key specifications

Number of processor cores
4 -Core
Graphics card model
Iris Plus Graphics 655
Internal connection options
M.2 (1x)
Network connections
RJ45 (1x)
Video connections
HDMI (1x), Thunderbolt (1x)
Memory type
DDR4-RAM
USB ports
USB-A
Item number
9875620

General information

Manufacturer
Intel
Category
Barebones
Manufacturer no.
BOXNUC8i5BEK2
Release date
7.9.2018
External links
Manufacturer's site (de)

Barebone properties

Design
All-in-one

Processor

Processor type
Intel Core i5-8259U
Clock frequency
2.30 GHz
Number of processors
1 x
Number of processor cores
4 -Core
Number of threads
8
Socket
BGA 1528
Max. turbo clock rate
2.80 GHz
Max. TDP
28 W
Processor properties
64-bit architecture, Direct I/O Virtualization Technology (VT-d), Intel Virtualisation Technology (VT-x), Onboard processor

Memory

Memory type
DDR4-RAM
Memory form factor
SO-DIMM
Number of pins
260 x
Memory chip compatibility
DDR4-2400
Memory Slots available
2
Max. memory slots
2
Max. RAM
32 GB
Memory voltage
1.20 V

Graphics card properties

Graphics card model
Iris Plus Graphics 655
Max. connected monitors
3 x

Internal connections

Internal connection options
M.2 (1x)

External connections

USB ports
USB-A
Exact USB ports
USB-A 3.1 Gen 1 (4x)

Network

Network connections
RJ45 (1x)
Max. port speed
307200 Mbit/s

Wireless transmission

Connectivity
Bluetooth, WLAN
Wi-Fi standard
Wi-Fi 5 / 802.11ac
Bluetooth version
5.0

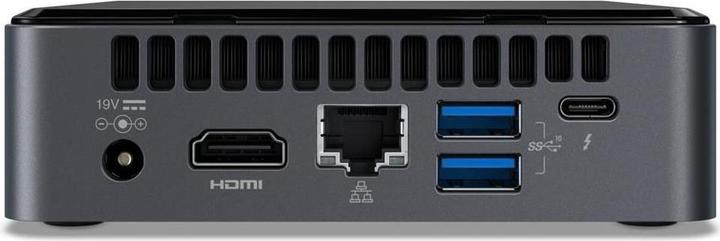

Video connections

Video connections
HDMI (1x), Thunderbolt (1x)

Audio connections

Audio outputs
3.5mm jack (1x)

Card reader properties

Memory card type
microSDXC

Power supply properties

Power
90 W

Sustainability

Manufacturer commitment
RE100

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Intel fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Mini PC barebone

Product dimensions

Width
117 mm
Length
112 mm
Height
36 mm

Package dimensions

Length
16 cm
Width
13 cm
Height
10 cm
Weight
1.19 kg
