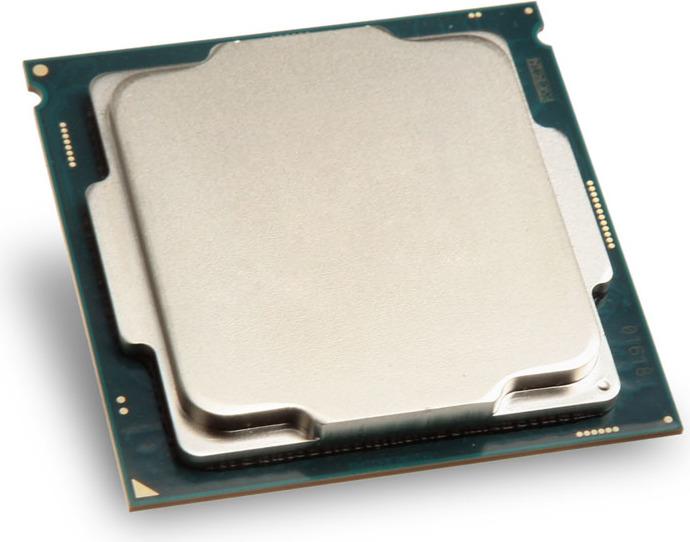

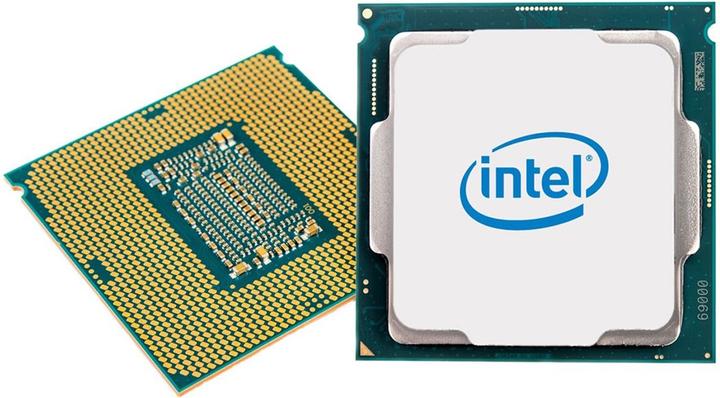

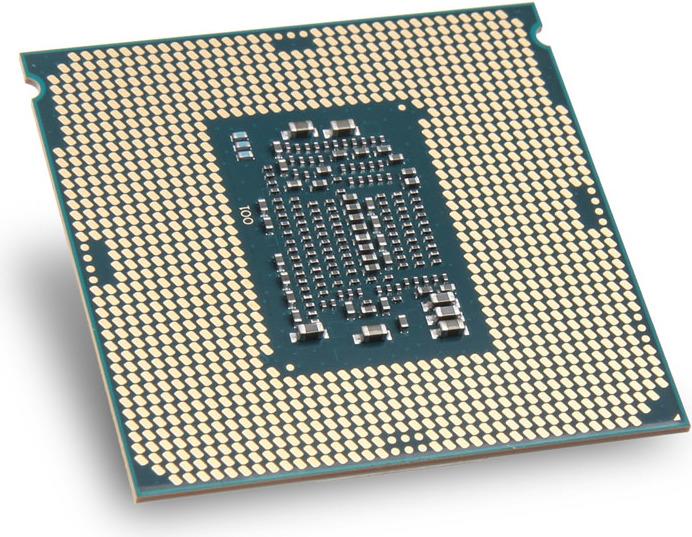

Intel Core i5-9600K R0 3.7 GHz (Coffee Lake) Socket 1151 - tray
LGA 1151, 3.70 GHz, 6 -CoreProduct details
The Intel Core i5-9600K processor is a powerful component of the 9th generation, based on the Coffee Lake architecture. With a base clock frequency of 3.7 GHz and the ability to reach up to 4.6 GHz in Turbo mode, this processor delivers impressive performance for demanding applications and games. It features six cores and supports up to six threads, enabling efficient multitasking. The processor is compatible with Intel® Optane™ memory, significantly enhancing system performance through optimized data management. Additionally, it is equipped with Intel® Turbo Boost technology, which dynamically adjusts the clock frequency to maximize performance when needed. The integrated Intel® UHD Graphics 630 provides improved graphics performance, while support for dual-channel memory and a maximum RAM capacity of 64 GB increases flexibility in system configuration.
- Support for Intel® Optane™ memory for performance enhancement
- Dynamic clock frequency adjustment through Intel® Turbo Boost technology
- Integrated Intel® UHD Graphics 630 for improved graphics performance
- Intel® vPro™ platform qualification for enhanced security and management features
- Maximum RAM capacity of 64 GB with dual-channel memory support.
Processor family | Core i5 9th Gen |
Number of processor cores | 6 -Core |
Max. TDP | 95 W |
Number of threads | 6 |
PCI express version (max.) | 3 |
Item number | 12860780 |
Manufacturer | Intel |
Category | Processors |
Manufacturer no. | CM8068403874405 |
Release date | 6.3.2020 |
External links |
Processor family | Core i5 9th Gen |
Socket | LGA 1151 |
Intel Core | Coffee Lake Refresh |
Clock frequency | 3.70 GHz |
Max. turbo clock rate | 4.60 GHz |
Number of processor cores | 6 -Core |
Number of threads | 6 |
Lithography | 14 nm |
Max. TDP | 95 W |
L3 Cache | 9 MB |
Multiplier unlocked | Yes |
PCI express version (max.) | 3 |
Processor design | 64-bit |
Transfer rate | 8 GT/s |
Intel technologies | Boat Guard |
Onboard graphics | Yes |
Graphics card model | UHD Graphics 630 |
DirectX version | 12 |
Max. connected monitors | 3 x |
Clock frequency | 350 MHz |
Graphics Max Dynamic Frequency | 1150 MHz |
Memory channels | Dual-Channel |
Memory type | DDR4-RAM |
Max. memory (RAM) | 64 GB |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Processor |
Length | 7.50 cm |
Width | 6.50 cm |
Height | 3 cm |
Weight | 50 g |
