InLine Mini PCIe card

Ratings
Delivered between Sat, 26.7. and Thu, 31.7.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

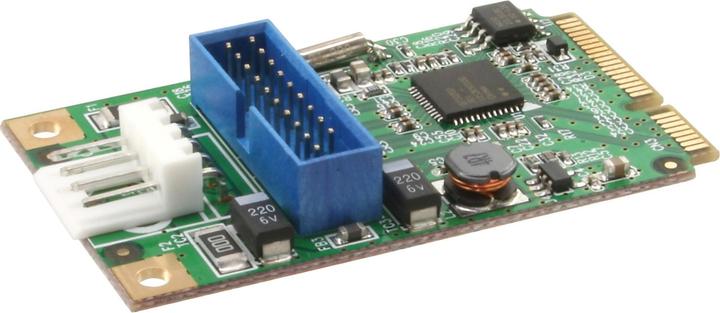

This Mini PCI-Express 2.0 to USB 3.0 Host Controller Card complies with the Universal Serial Bus 3.0 Specification Revision 1.0 and the PCI Express Generation 2 Specification. The SuperSpeed USB 3.0 standard can achieve speeds of up to 5 Gb/s, making it up to 10 times faster than the USB 2.0 HighSpeed standard, which has a maximum speed of 480 Mb/s. The card is suitable for embedded PCs or micro-PC systems with Mini PCI-Express expansion capability, making it ideal for industrial applications, for example. The card features an internal motherboard connector for USB 3.0 (19-pin).

  • Mini PCI-Express card with native single-chip design
  • Supports USB 3.0, 19-pin motherboard socket for two connections
  • x1 PCI-Express card, data throughput up to 5.0 GBit/s
  • Supports PCI Bus Power Management Interface Specification Rev. 1.2
  • Compatible with the electromechanical PCI-E Mini Card Specifications Rev. 1.2
  • Compatible with the Full-Mini (F1) card type form factor
  • Renesas chip, supports Windows 7, Vista, XP, Server 2003/2008 (all 32/64bit)
  • USB 3.0: Compliant with USB 3.0 specifications
  • Backward compatible with USB 2.0 and PCI-Express 1.0
  • Compliant with Intel's xHCI Specifications Rev. 1.0
  • Max. 5V/900mA per USB 3.0 output
  • Two independent USB 3.0 ports combined on one internal USB 3.0 motherboard connector (19-pin)
  • 4-pin floppy power connector for power-hungry USB 3.0 devices without their own power supply
  • Fully Plug & Play compatible

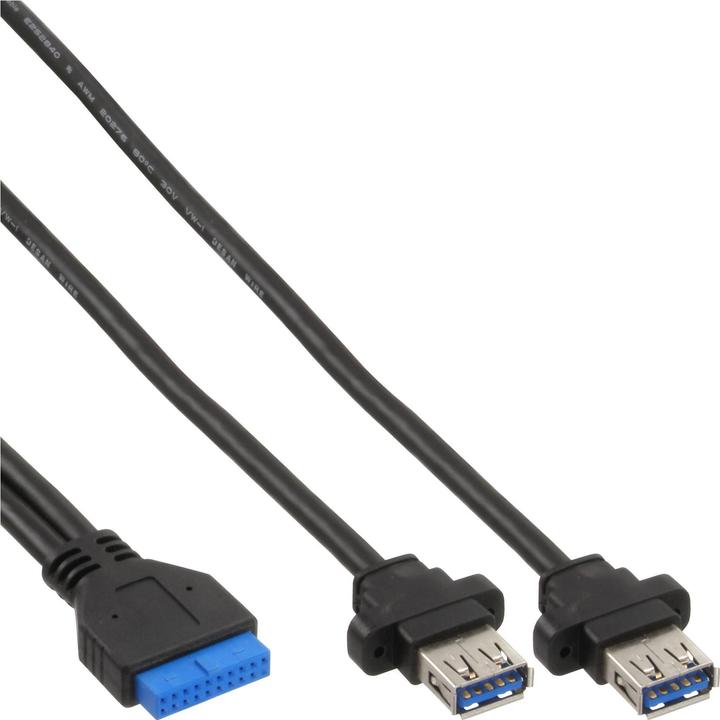

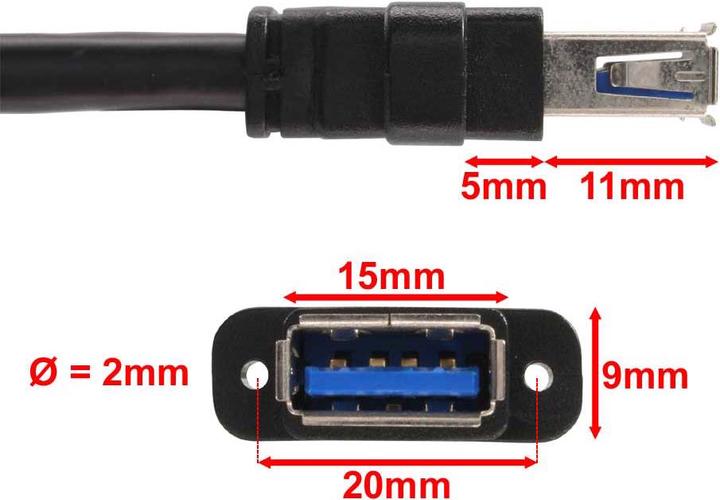

  • Package contents: Mini-PCIe card 2x USB 3.0, 2x internal USB cable for installation (approx. 80cm), manual, driver CD.

Key specifications

Expansion card form factor
Low profile
USB ports
USB-A
Exact USB ports
USB-A 3.1 Gen 2 (2x)
Internal connection options
PCI Express x1
Expansion slot
Mini PCI Express (1x)
Item number
13265625

General information

Manufacturer
InLine
Category
Controller cards
Manufacturer no.
66900
Release date
25.5.2020
External links
Manufacturer's site (de)

Controller properties

Expansion card form factor
Low profile

Peripheral port

USB ports
USB-A
Exact USB ports
USB-A 3.1 Gen 2 (2x)

Internal interfaces

Internal connection options
PCI Express x1
Expansion slot
Mini PCI Express (1x)

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Package dimensions

Length
16.50 cm
Width
16 cm
Height
11.70 cm
Weight
156 g
