InLine Interface card

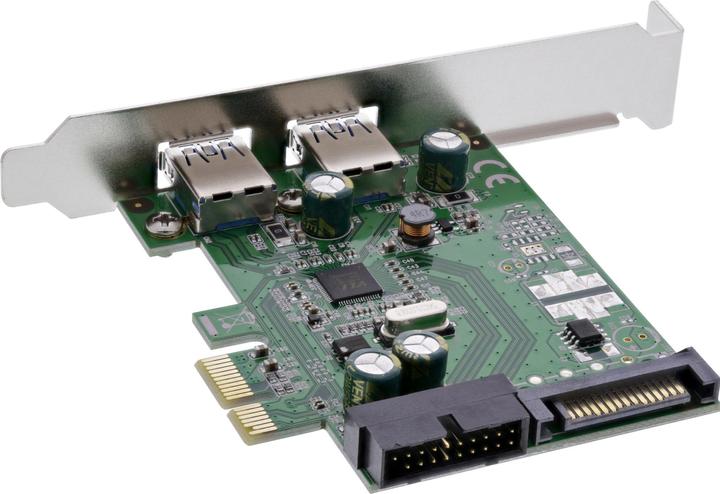

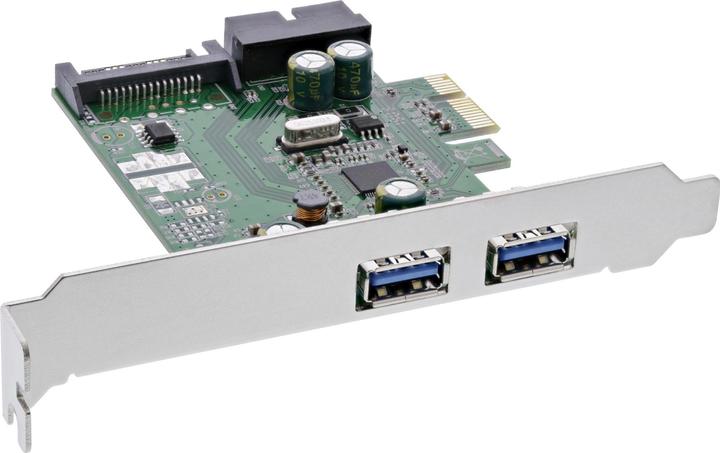

The 4-Port PCI-Express SuperSpeed USB 3.0 card (USB 3.1 Gen.1) expands any PCI-Express capable computer system with 2 external USB 3.0 Type-A ports and 2 internal ports. With USB 3.0, you can achieve a data rate of up to 5 Gb/s, while also being backward compatible with existing USB 2.0 devices at 480 Mbit/s.

• Complies with the PCI Express Base Specification Revision 2.0
• Supports PCI Express x1 lane interface with a throughput of up to 5 Gb/s.
• Complies with the Universal Serial Bus 3.0 Specification Revision 1.0
• Backward compatible with USB 2.0 and PCI-Express 1.0
• Complies with the eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
• Supports the following data transfer rates: USB 3.0 mode up to 5 Gb/s, USB 2.0 mode up to 480 Mb/s
• Supports Bulk Only Transfer (BOT) mode and USB Attached SCSI Protocol (UASP) mode.
• Max. 5V/900mA power output at each USB 3.0 port (when connected to a power supply)
• Supports 3 external and 1 internal USB 3.0 connections
• Fully Plug and Play compatible
• Supports standard and low-profile computer cases
• System requirements: Computer with an available PCI Express x1 slot, Windows 10 / 8.x / 7 / Vista / XP 32-/64-Bit
• VIA VL805 chipset

Package contents:

• USB 3.0 PCI-Express card
• User manual
• Driver CD
• Low-profile bracket.
