Product details
DI boxes for optimal signal transmission from musical instruments to mixers or amplifiers. Interference caused by impedance mismatches, such as ground loops, is largely avoided through the use of transformer coupling. The input and output are galvanically isolated. For matching line levels, please use devices from the LTR series.

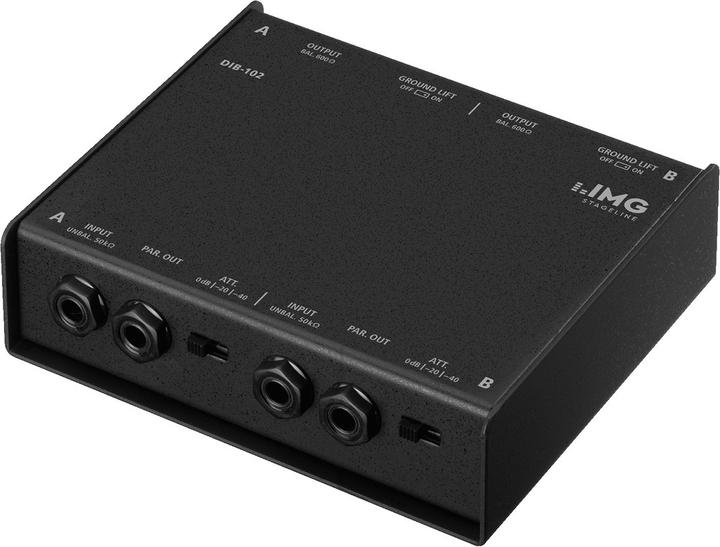

2-channel DI box
3-way attenuation switch (0/-20/-40 dB) per channel
1 ground lift switch per channel
1 instrument through output per channel
Broadband transformer
Sturdy metal housing
Recommended and roadworthy. Affordable audio helpers for the "always on hand" tool case.
The IMG Stage Line DIB-102 impresses with its low purchase price and very stable housing. The frequency response is exemplary.
Audio area of use | Instruments, Music events, Recording studio |
Compatibility | Bass, Guitar, Keyboards, Synthesizer |
Item number | 8433352 |
Manufacturer | Img Stage Line |
Category | Audio effects |
Manufacturer no. | 24.706 |
Release date | 20.4.2018 |
Colour | Black |
Exact colour description | Black |
Audio area of use | Instruments, Music events, Recording studio |
Compatibility | Bass, Guitar, Keyboards, Synthesizer |
effect type | DI box |
Number of faders | 2x |
Number of controllers | 1x |
Number of channels | 2x |
Effects unit Format | Other |
Signal processing | Analogue |
Audio inputs | 6.3 mm jack (2x), XLR (1x) |
Audio outputs | 6.3 mm jack (1x), XLR (1x) |
CO₂ emissions | 99.61 kg |
Climate contribution | CHF 2.37 |
Depth | 13 cm |
Width | 14.80 cm |
Height | 5 cm |
Weight | 755 g |
Length | 18.40 cm |
Width | 14 cm |
Height | 5.90 cm |
Weight | 868 g |
Specifications may include unverified machine translations.
