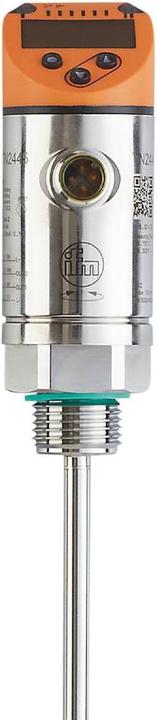

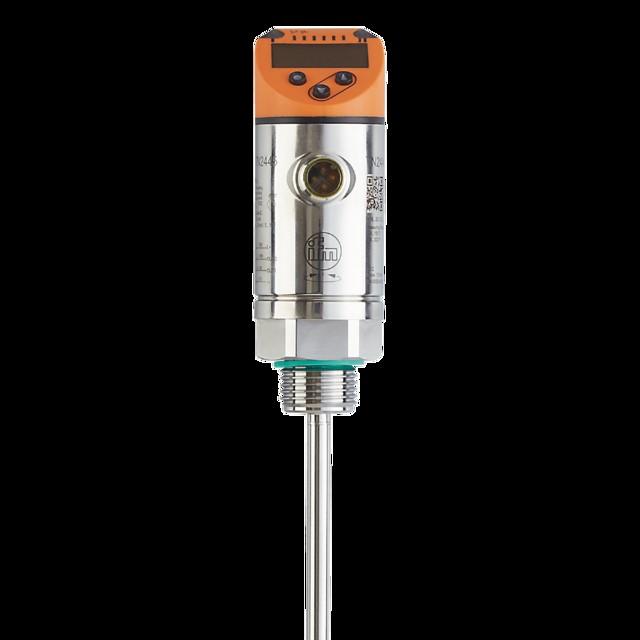

IFM TN2445

The TN2445 is a high-precision electronic temperature sensor designed for a variety of applications in industrial environments. With a wide measurement range of -50 to 150 °C, this sensor is ideal for monitoring temperatures in different processes. The sensor features a G 1/2 process connection and offers a 4-wire connection technique that ensures accurate measurement and stability. The operating voltage ranges from 18 to 32 V DC, and the current consumption is 50 mA. The TN2445 allows for flexible programming with up to two normally closed or normally open contacts that can be individually configured, as well as an analog output of 4 to 20 mA or 0 to 10 V. The M12 connector facilitates easy installation and integration into existing systems. The housing is made from high-quality materials that provide excellent resistance to corrosive environments.

• Wide measurement range of -50 to 150 °C
• Flexible programmability with up to two normally closed or normally open contacts
• Analog output options of 4 to 20 mA or 0 to 10 V
• Robust housing made of 1.4404 (V4A / 316L) for high corrosion resistance
• Easy installation via M12 connector.
