IFM TD2247
1 item ordered
Product details

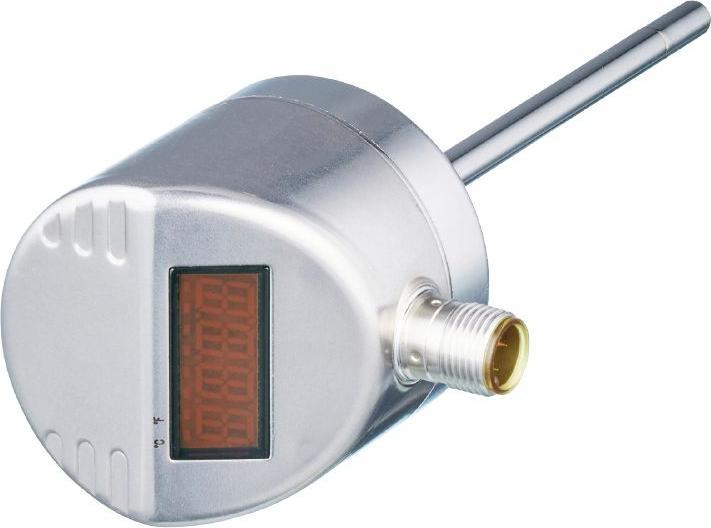

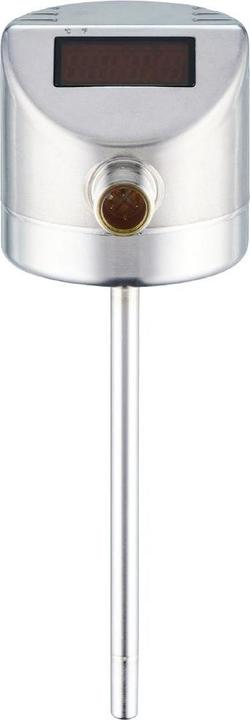

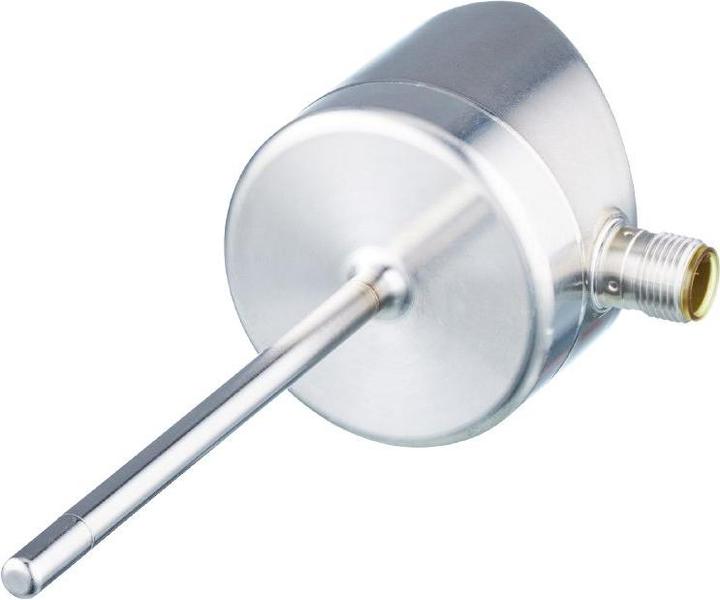

The IFM TD2247 temperature transmitter is a high-precision measuring device designed for a variety of applications in temperature monitoring. With a measurement range of -50 to 150 °C and a pressure resistance of up to 160 bar, this device is ideal for demanding environments. The transmitter uses a Pt 1000 sensor certified according to DIN EN 60751, Class A, ensuring high accuracy and reliability. The configurable IO-Link interface allows for easy integration into existing systems and customization to specific requirements. With a mounting length of 150 mm and a diameter of 6 mm, the transmitter is compact and versatile. The factory setting of the measurement range to 0 to 100 °C provides immediate readiness for use, while the analog signal enables precise data transmission.
- Measurement range of -50 to 150 °C
- Pressure resistance of 160 bar
- Pt 1000 sensor according to DIN EN 60751, Class A
- Configurable IO-Link interface
- Analog signal transmission.
Diameter | 6 mm |
Item number | 33873167 |
Manufacturer | IFM |
Category | Buttons + Switches |
Manufacturer No. | TD2247 |
Release date | 17.5.2023 |
Material group | Metal |
Material | Metal |
Nominal voltage | 24 V |
Protection type (IP code) | IP67, IP69K |
Country of origin | USA |
CO₂ emissions | 0.28 kg |
Climate contribution | CHF 0.11 |
Communication standard | KNX |
Items per sales unit | 1 pcs. |
Scope of delivery | > -58...302 °F<br, > (according to DIN EN 60751, class A)<br, > (configurable)<br, > 1 x Pt 1000<br, > Analogue signal<br, > Diameter Ø 6 mm<br, > Factory setting 0...100 °C °C<br, > Installation length EL 150 mm<br, > IO-Link<br, > M12 plug connection, > Measuring range -50...150 °C<br, > Pressure resistance 160 bar<br, Temperature transmitter<br |
Length | 150 mm |
Diameter | 6 mm |
