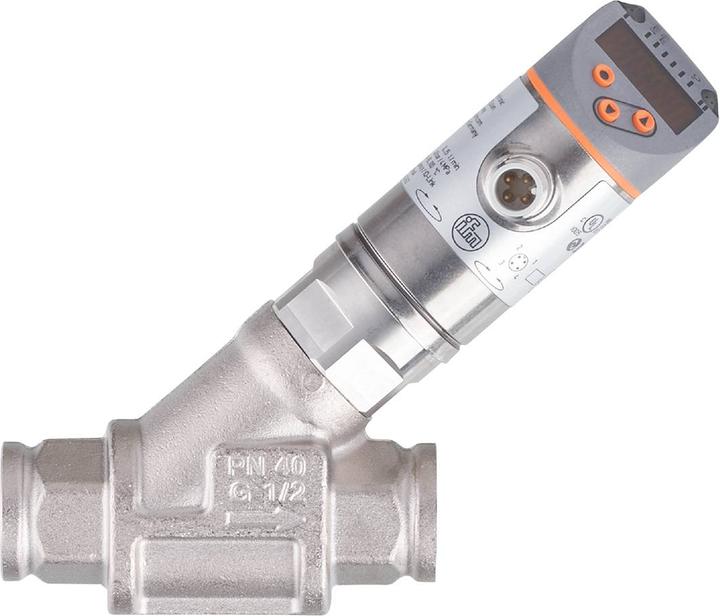

The SBG233 from IFM is a mechatronic flow sensor designed for precise measurements in various applications. With a measuring range of 0.5 to 25 l/min or 0.03 to 1.5 m³/h, this sensor offers high flexibility and accuracy. It is equipped with a backflow preventer to ensure reliable operation. The sensor features a process connection of type G 1/2 and is designed for operation with a voltage of 18 to 30 V DC. The current consumption is 50 mA, making it an energy-efficient choice for industrial applications. The SBG233 provides various output options, including programmable normally open/normally closed contacts and analog signals, as well as the option to use IO-Link. A rotatable display allows for easy reading of measurement values from different angles. The sensor is made from high-quality materials, including V4A stainless steel, making it particularly robust and durable.
- Measuring range of 0.5 to 25 l/min and 0.03 to 1.5 m³/h
- Backflow preventer for reliable measurements
- Versatile output options: programmable normally open/normally closed contacts, frequency, or analog
- Rotatable display for easy reading
- Robust construction from V4A stainless steel and chemically nickel-plated brass.
