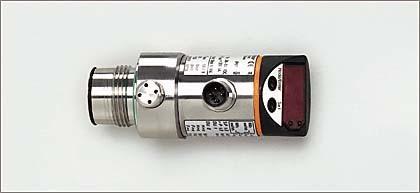

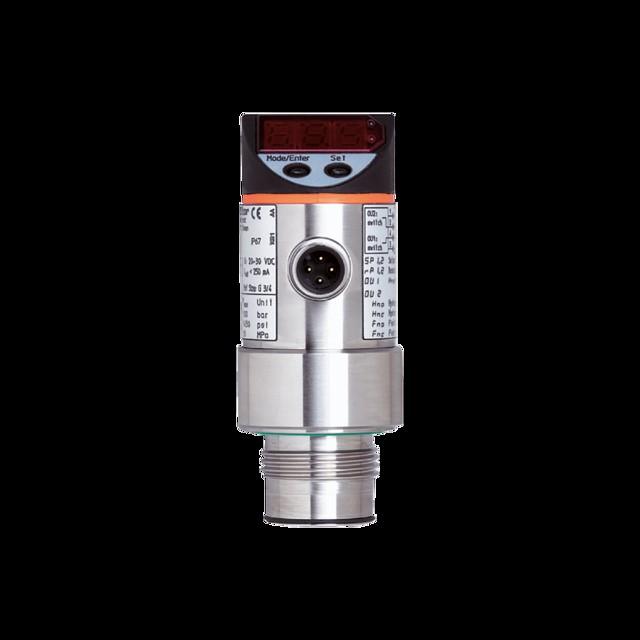

IFM Pressure sensor PF-001BREB34-M FRKG/US//P PF295

Ifm Electronic pressure sensor PF2957
Manufacturer: Ifm Electronic
Designation: Pressure sensor MFRKG/US/P
Type: PF2957
Suitable as monitor: No
Suitable as 2 point controller: No
Suitable as limiter: No
Max. 10000 hPa
Cut-in pressure: -0.045 to 0.999 bar
Cut-out pressure: -0.05 to 0.994 bar
Burst pressure: 200 bar
Medium temperature: -25 to 80 °C
Rated operating voltage Ue at DC: 20 to 30 V
Rated operational current Ie at AC-1, 400 V: 0.25 A
Number of auxiliary contacts as make contacts: 1
Number of auxiliary contacts as break contacts: 1
Version of electrical connection: Other
With manual override: Yes
With manual on/off switch: Yes
Electronic version: Yes
Explosion-proof: No
Protection class (IP): IP67

Ifm Electronic pressure sensor PF2957: more details
Pressure sensors, Combi pressure sensor, measuring range: -50 to 1000 mbar / -0.7 to 14.5 psi / -5.0 to 100 kPa,
Process connection: G 3/4 A, 4-wire, DC PNP/NPN,
Operating voltage: 20 to 30 V DC,
Current consumption: 60 mA,
2 x normally open / normally closed programmable or 1 x normally open / normally closed programmable + 1 x analogue (4 to 20 mA / 0 to 10 V, scalable 1:4),
2 x normally open / normally closed programmable or 1 x normally open / normally closed programmable + 1 x analogue (4 to 20 mA / 0 to 10 V, scalable 1:4)
Plug connection: M12 plug connection, no dead space,
Rotatable housing 350°,
0-point and span adjustable,
Function programmable,
Material housing: V4A (1.4404), PBT (Pocan), PC, PEI, EPDM/X (Santoprene), FPM (Viton),
Materials in contact with the medium: Ceramic (99.9% Al2O3), PTFE, FPM (Viton), V4A / 316L / 1.4435
Surface finish: Ra < 0.4 / Rz 4
EAN: 4021179185165.
