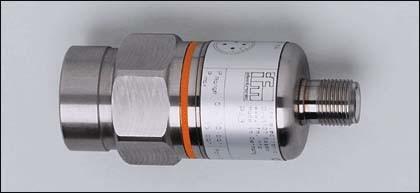

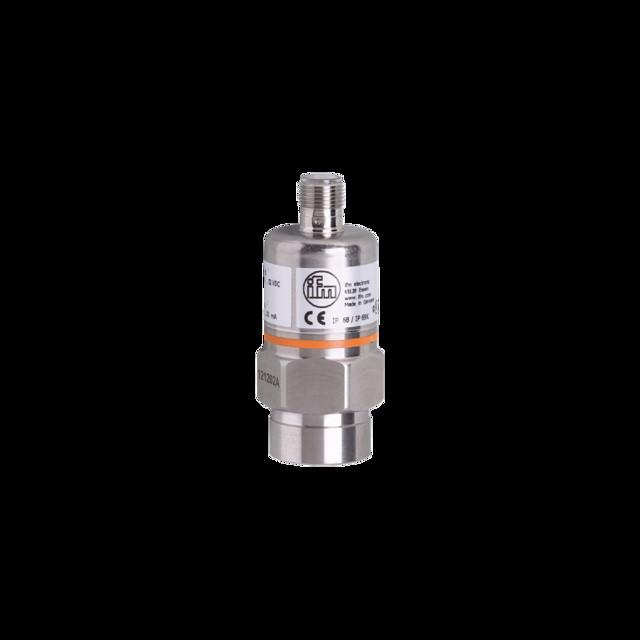

IFM Pressure sensor electronic 0-400bar 0-10 V PA9020

Ifm Electronic Pressure sensor electronic PA9020 Manufacturer :Ifm Electronic Designation :Pressure sensor electronic 0-400bar 0-10 V Type :PA9020 Suitable as monitor :no Suitable as 2-point controller :no Suitable as limiter :no Switch-on pressure :0..400 bar Bursting pressure :1000 bar Medium temperature :-25..90 °C Rated operating voltage Ue at DC :16...32 V Electrical connection type :other With manual override :no With manual on/off switch :no Electronic version :yes Explosion-proof :no Protection class (IP) :IP68 Ifm Electronic pressure sensor electronic PA9020: more details Pressure sensors, Electronic pressure sensor, Measuring range: 0...400 bar, Process connection: G 1/4I, 3-wire, DC, Operating voltage: 16...32 V DC, Current consumption: 18 mA, 0...10 V plug connection, M12 plug connection, e1-compliant, Material housing: V4A (1.4404) FPM (Viton) PA EPDM/X (Santoprene), Materials in contact with the medium: V2A (1.4305) Ceramic FPM (Viton) , EAN: 4021179183734.
